Diagnostic Routine AM

Diagnostic Routine AM

Diagnostic Overview

The Headlamps On Warning Chime Is Inoperative

Normal Operation and Fault Conditions

REFER to Headlamps On Warning Chime .

Pinpoint Test

1. CHECK THE SAFETY BELT WARNING CHIME OPERATION

1. Ignition OFF.

2. Ignition ON.

3. Monitor the safety belt warning chime when the ignition is transitioned from OFF to RUN.

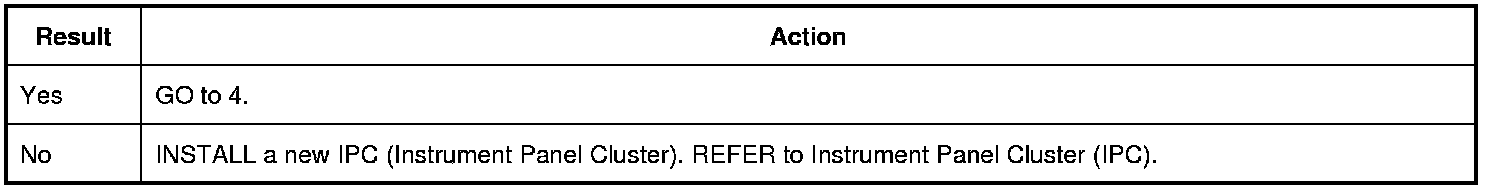

Does the safety belt warning chime operate for approximately 6 seconds?








2. CHECK THE INTERIOR LAMPS OPERATION

1. Open and close the driver door.

2. Observe the interior lamps.

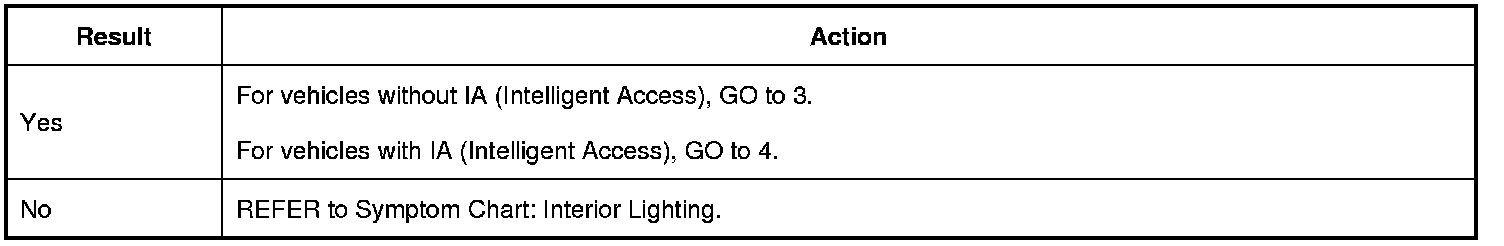

Do the interior lamps operate correctly from the driver door?








3. CHECK THE KEY-IN-IGNITION WARNING CHIME OPERATION

1. Ignition OFF.

2. Insert the key into the ignition lock cylinder.

3. Open the LH (Left Hand) front door and observe the key-in-ignition warning chime operation.

Does the key-in-ignition warning chime operate correctly?








4. RETRIEVE THE RECORDED DTCs (Diagnostic Trouble Codes) FROM THE IPC (Instrument Panel Cluster) SELF-TEST

1. Using a scan tool, perform the IPC (Instrument Panel Cluster) self-test.

Are any DTCs (Diagnostic Trouble Codes) recorded?








5. RETRIEVE THE RECORDED DTCs (Diagnostic Trouble Codes) FROM THE BCM (Body Control Module) SELF-TEST

1. Using a scan tool, perform the BCM (Body Control Module) self-test.

Are any DTCs (Diagnostic Trouble Codes) recorded?
