Instrument Panel - Exploded View

Instrument Panel - Exploded View

Exploded View

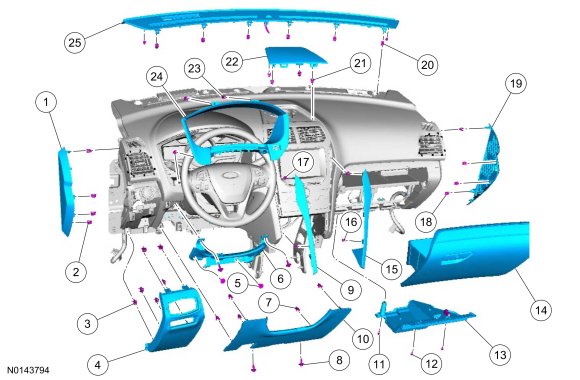

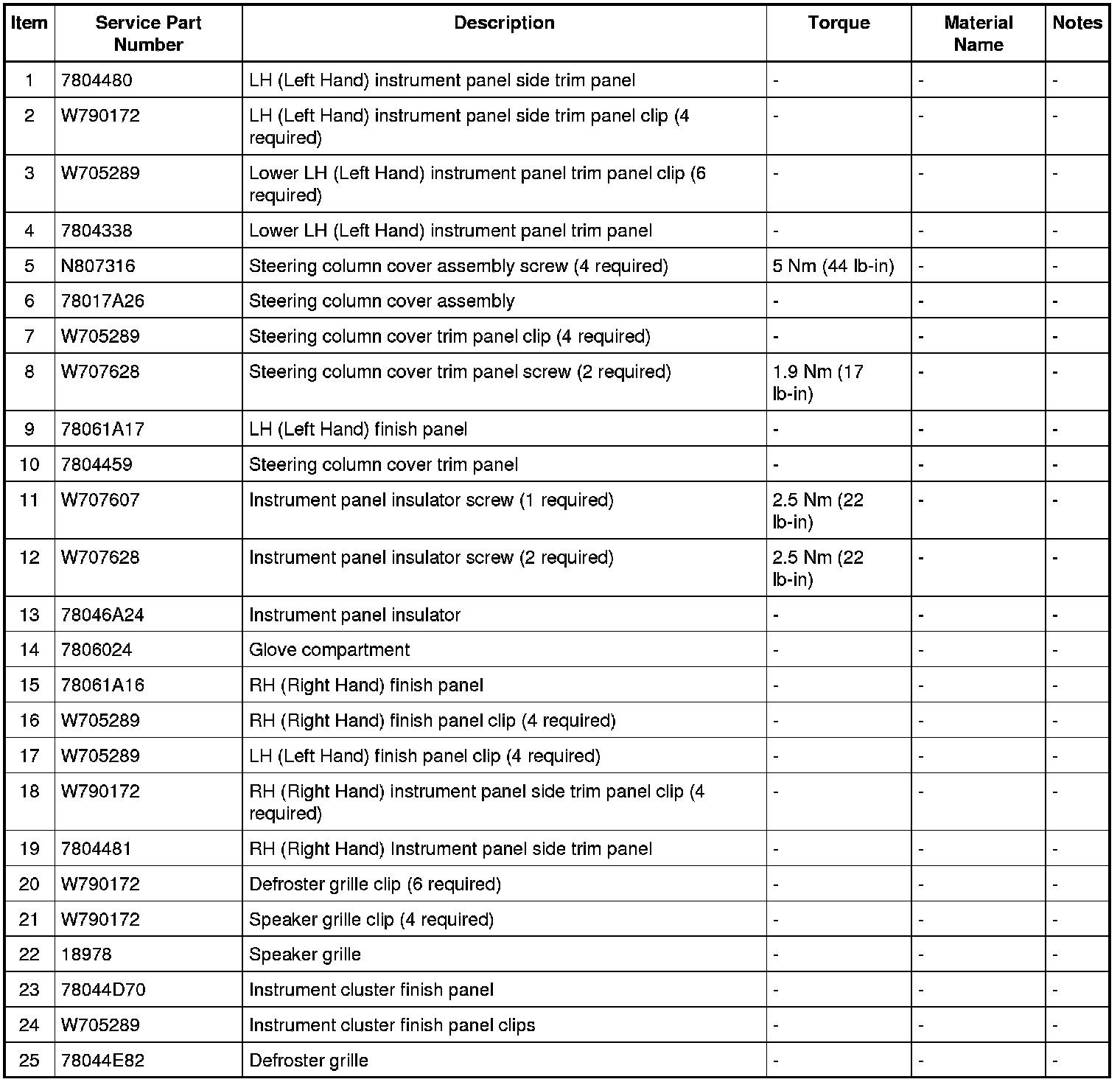

Instrument Panel

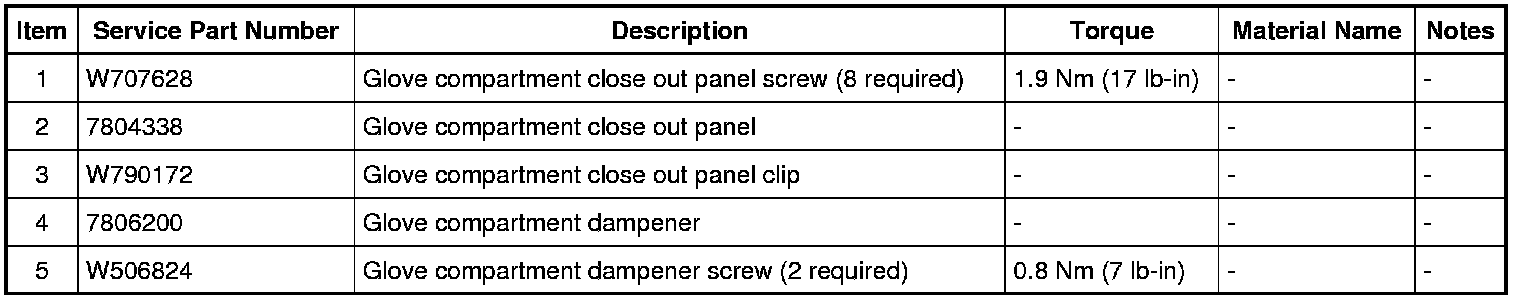

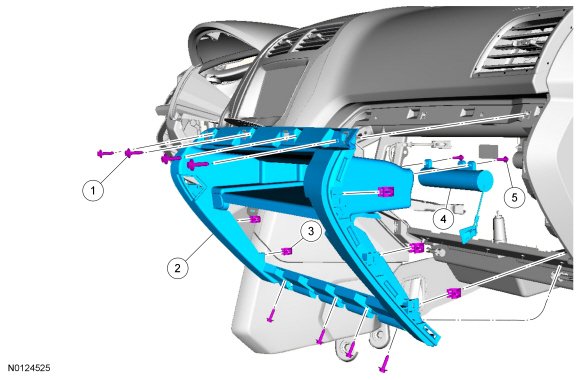

Glove Compartment Close Out

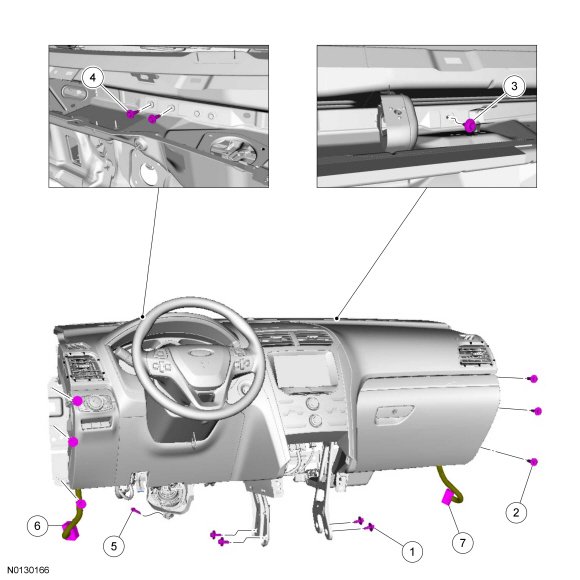

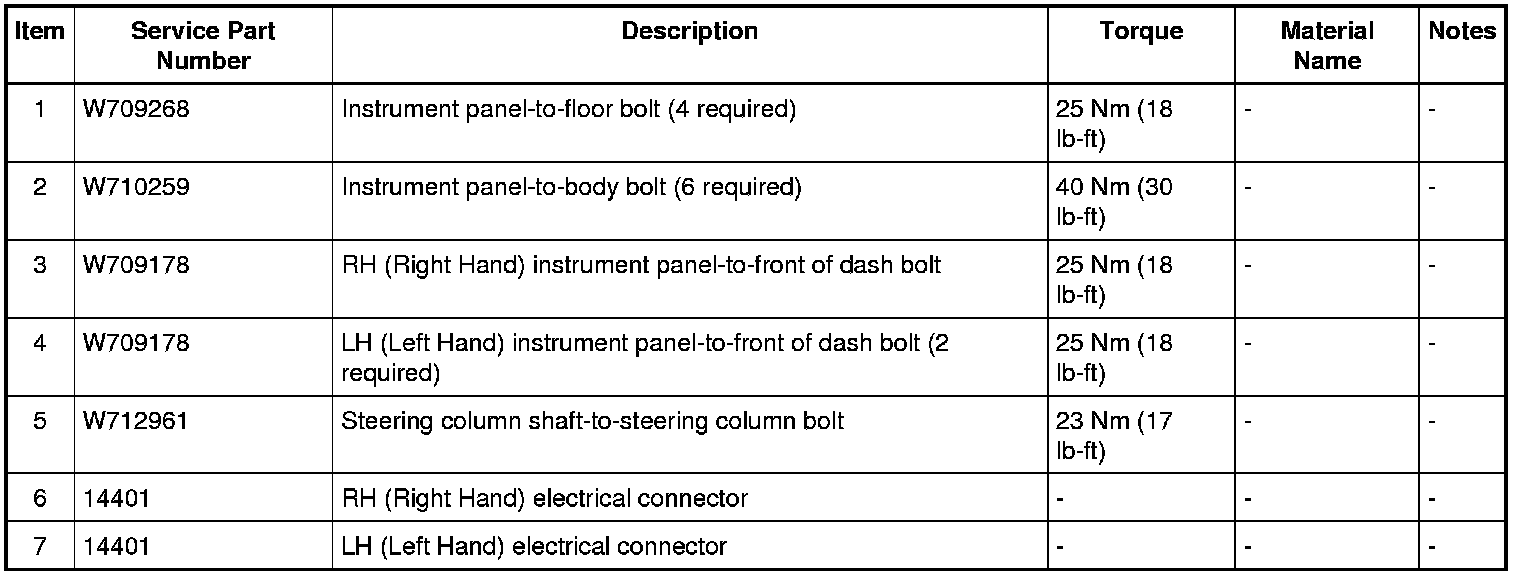

Instrument Panel Fasteners
