Temperature Blend Door Actuator




Temperature Blend Door Actuator

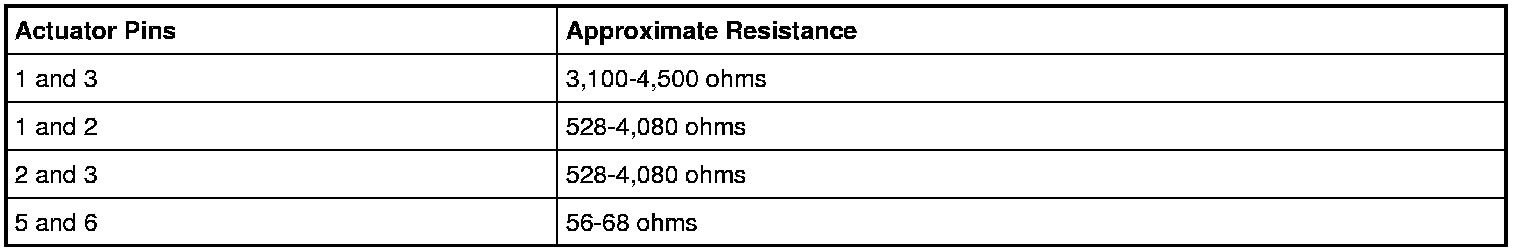

Component Test

1. Perform the component test. Component Test
