In-Vehicle Temperature Sensor




In-Vehicle Temperature Sensor

WARNING: Before beginning any service procedure, REFER to Safety Warnings . Failure to follow this instruction may result in serious personal injury.

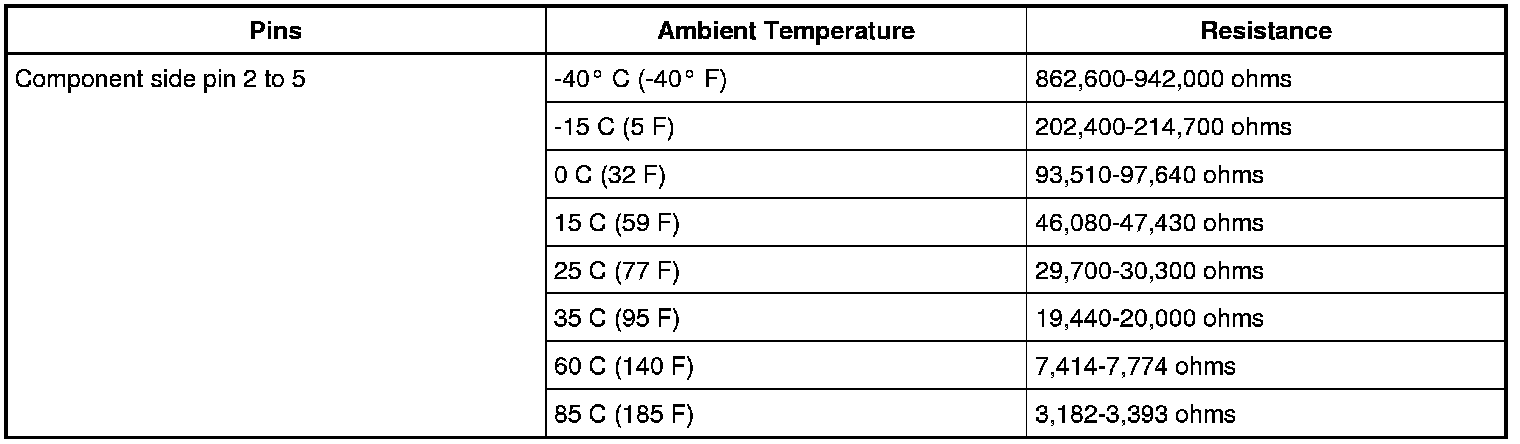

Component Test

1. Perform the component test. Component Test
