Ford Truck
>>
2012
>>
Explorer FWD L4-2.0L Turbo
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
Climate Control - DATC
>>
In-Vehicle Temperature Sensor
In-Vehicle Temperature Sensor
In-Vehicle Temperature Sensor

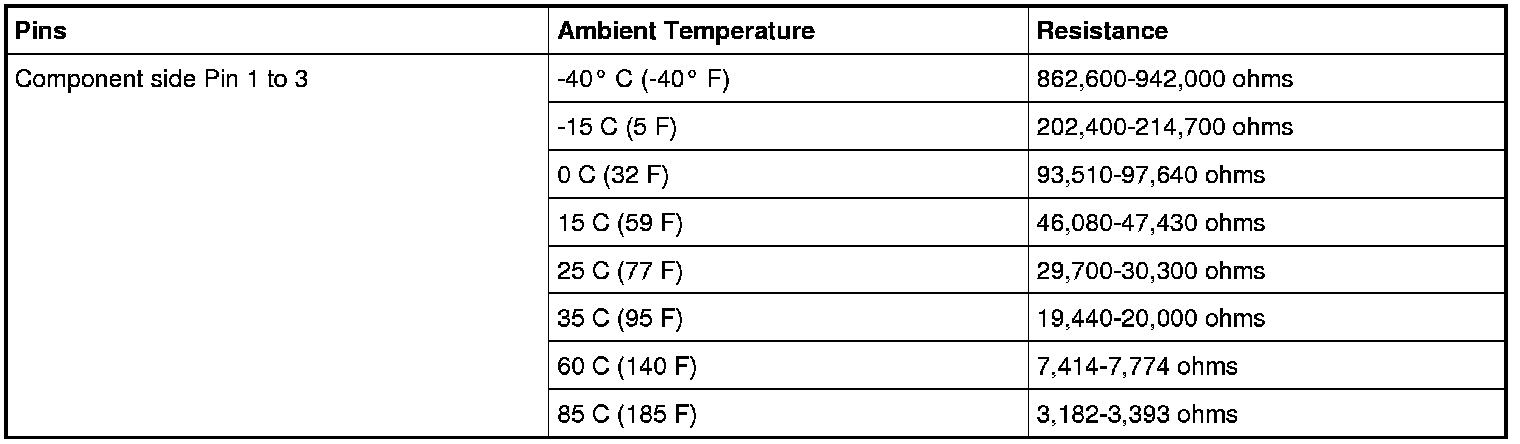

Component Test
1.
Perform the component test.
Component Test
