Evaporator Discharge Air Temperature Sensor

Evaporator Discharge Air Temperature Sensor

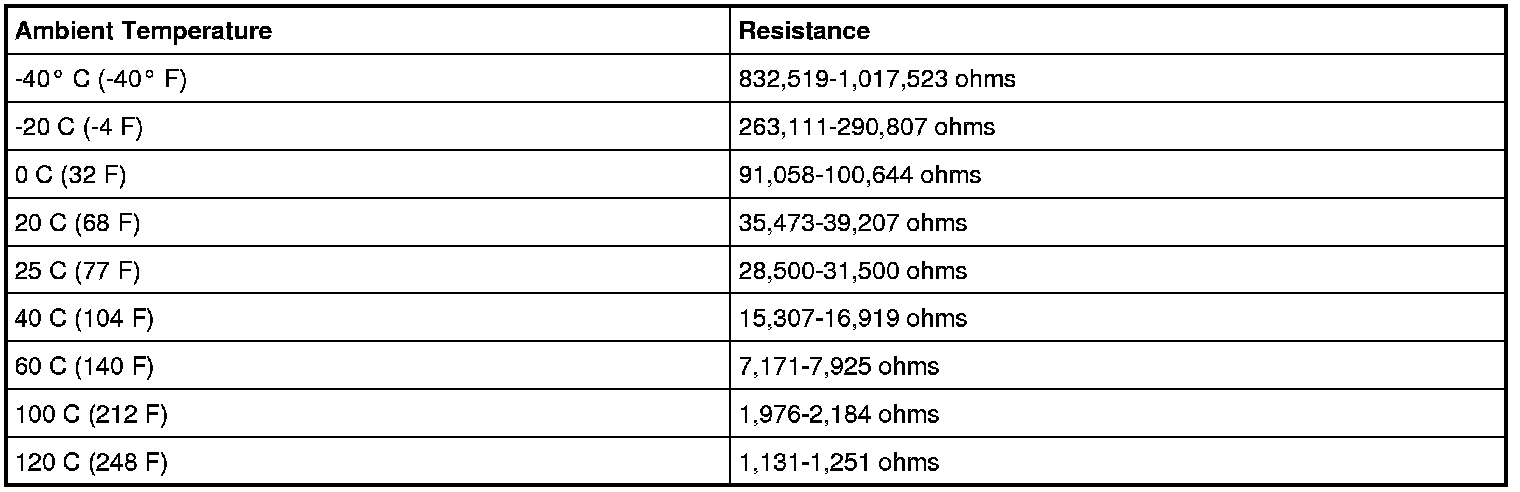

Component Test

1. Perform the component test. Component Test
