Compressor To Condenser Discharge Line

Compressor to Condenser Discharge Line - 2.0L GTDI

WARNING: Before beginning any service procedure, REFER to Safety Warnings . Failure to follow this instruction may result in serious personal injury.

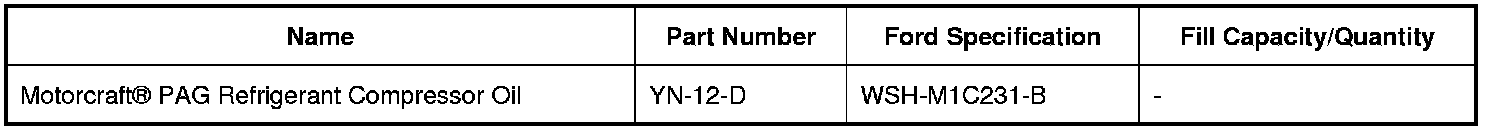

Material(s)






Removal

1. Recover the refrigerant. REFER to Air Conditioning (AC) System Recovery, Evacuation, and Charging .

2. Remove the front bumper cover. REFER to Bumper Cover - Front .

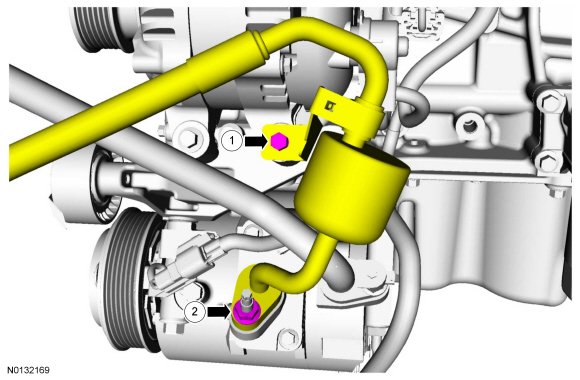

3. Remove the A/C compressor discharge fitting nut and disconnect the fitting.

1. Remove the compressor to discharge line bracket bolt.
- Tighten to 15 Nm (133 lb-in).

2. Remove the A/C compressor discharge fitting nut and disconnect the fitting.

- Discard the O-ring seal and gasket seal.
- Tighten to 15 Nm (133 lb-in).

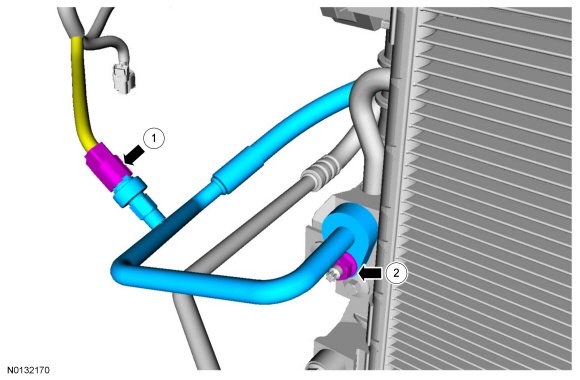

4. Remove the compressor-to-condenser discharge line.

1. Disconnect the A/C pressure transducer electrical connector.

2. Remove the condenser inlet fitting nut and disconnect the fitting.

- Discard the O-ring seal and gasket seal.
- Tighten to 15 Nm (133 lb-in).






Installation

1. To install, reverse the removal procedure.

1. Install new gaskets seals and O-rings seals.

2. Add the correct amount of clean PAG (Polyalkylene Glycol) oil to the refrigerant system, REFER to Refrigerant Oil Adding .

2. Evacuate, leak test and charge the refrigerant system. REFER to Air Conditioning (AC) System Recovery, Evacuation, and Charging .
