Auxiliary Climate Control Assembly

Auxiliary Climate Control Assembly

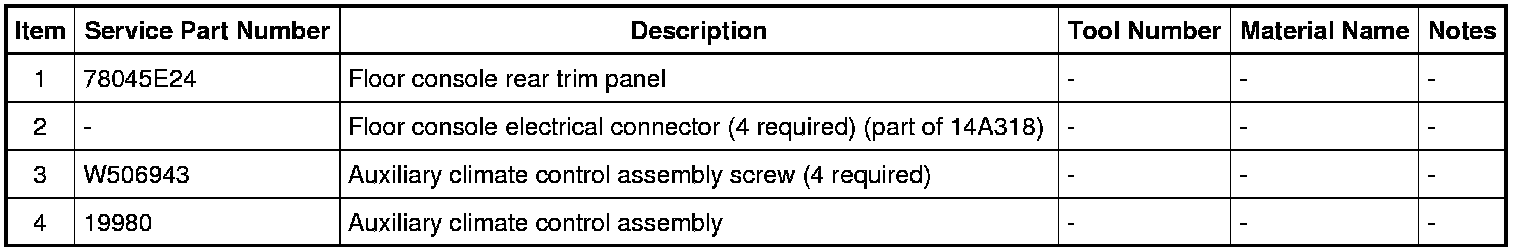

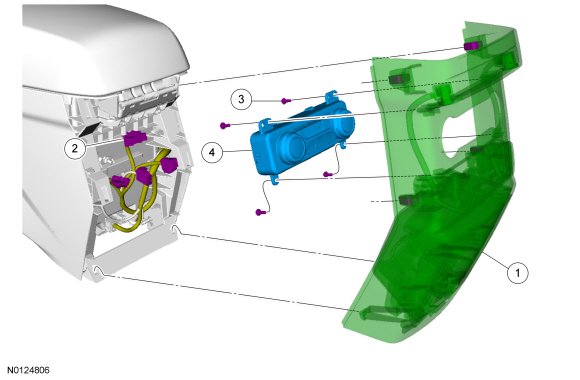

Exploded View










Removal

1. Detach the 4 floor console rear trim panel clips and remove the floor console rear trim panel.

- Disconnect the electrical connectors.

2. Remove the 4 auxiliary climate control assembly screws.

3. Disconnect the auxiliary climate control assembly electrical connector and remove the auxiliary climate control assembly.

Installation

1. To install, reverse the removal procedure.
