Climate Control - DATC

Air Conditioning (AC) Compressor - 2.0L GTDI

WARNING: Before beginning any service procedure, REFER to Safety Warnings . Failure to follow this instruction may result in serious personal injury.

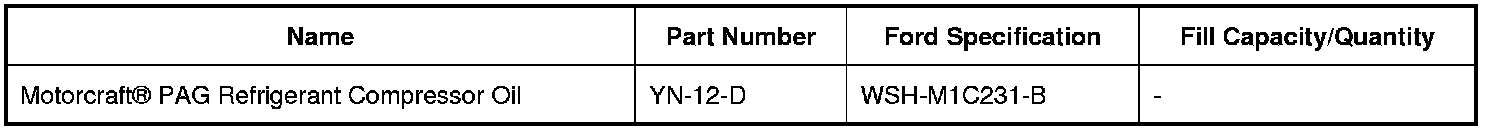

Material(s)






Removal

NOTICE: If installing a new A/C (Air Conditioning) compressor due to an internal failure of the old unit, carry out the following procedures to remove contamination from the A/C (Air Conditioning) system. Failure to remove contamination will result in poor A/C (Air Conditioning) performance and/or damage to the A/C (Air Conditioning) system components.
- If A/C (Air Conditioning) flushing equipment is available, carry out flushing of the A/C (Air Conditioning) system prior to installing a new A/C (Air Conditioning) compressor. REFER to Air Conditioning (AC) System Flushing .
- If A/C (Air Conditioning) flushing equipment is not available, carry out filtering of the A/C (Air Conditioning) system after a new A/C (Air Conditioning) compressor has been installed. REFER to Refrigerant System Filtering Following Air Conditioning (AC) Compressor Installation .
- Install a new TXV (Thermostatic Expansion Valve), as directed by the A/C (Air Conditioning) flushing or filtering procedure.
- Install a new receiver/drier desiccant cartridge as directed by the A/C (Air Conditioning) flushing or filtering procedure.

NOTE: Installation of a new receiver/drier desiccant cartridge is not required when installing a new A/C (Air Conditioning) compressor, except when there is physical evidence of a failed A/C (Air Conditioning) compressor, or damage to the receiver/drier desiccant cartridge.

1. With the vehicle in NEUTRAL, position it on a hoist. REFER to Jacking and Lifting .

2. If flushing of the A/C (Air Conditioning) system has not been carried out, recover the refrigerant. REFER to Air Conditioning (AC) System Recovery, Evacuation, and Charging .

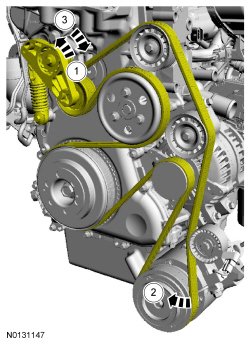

3. Remove the drive belt from the A/C (Air Conditioning) compressor pulley.

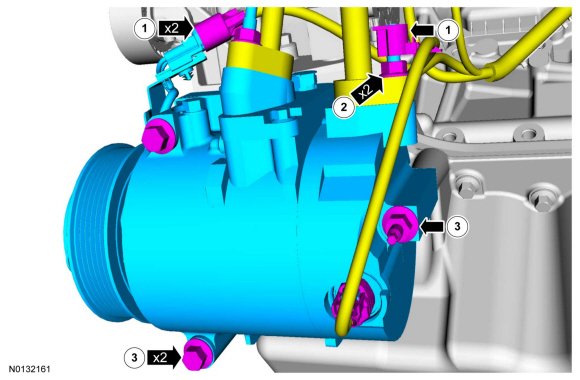

4. Remove the A/C (Air Conditioning) compressor.

1. Detach the wire harness pin-type retainer, disconnect the field coil and control valve electrical connectors.

2. Remove the A/C compressor suction and discharge fitting nuts and disconnect the fittings.

- Discard the O-ring seal.
- Tighten to 15 Nm (133 lb-in).

3. Remove the A/C compressor mounting nut, completely loosen the A/C compressor mounting stud, remove the A/C compressor bolts and remove the A/C compressor.
- Tighten to 9 Nm (80 lb-in).






Installation

1. To install, reverse the removal procedure.

- Install new gasket seals and O-ring seals.

- If filtering of the A/C (Air Conditioning) system is not to be carried out, evacuate, leak test and charge the refrigerant system. REFER to Air Conditioning (AC) System Recovery, Evacuation, and Charging .

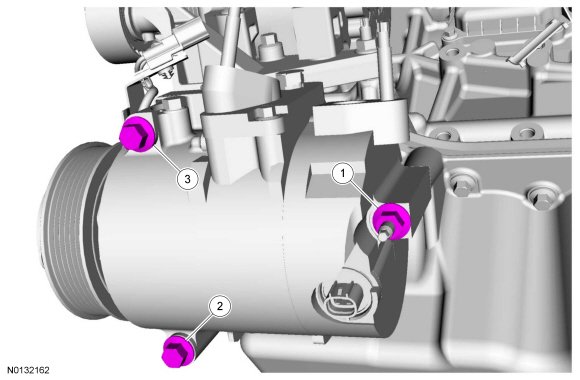

2. Tighten the A/C (Air Conditioning) compressor bolts and nut in the sequence shown.
- Tighten to 25 Nm (18 lb-ft).
