Climate Control - DATC

Blower Motor

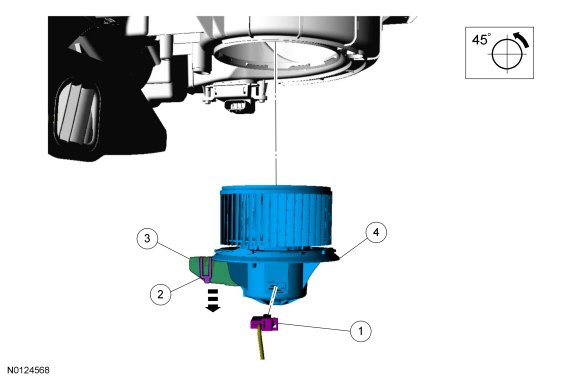

Exploded View










Removal

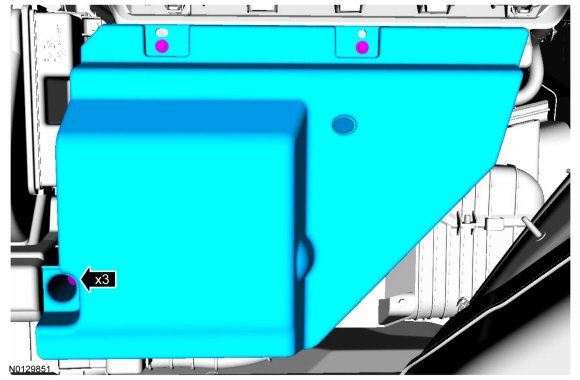

1. Remove the 3RH (Right Hand) lower instrument panel insulator retainers and the RH (Right Hand) lower instrument panel insulator.





2. Disconnect the blower motor electrical connector.

3. Depressor the 2 retaining tabs and detach the blower motor vent tube from the heater core and evaporator core housing.

4. NOTE: The blower motor vent tube must be completely detached from the heater core and evaporator core housing to allow the blower motor to be rotated.
Rotate the blower motor counterclockwise to detach it from the heater core and evaporator core housing and remove the blower motor.

Installation

1. Install the blower motor and rotate clockwise to attach it to the heater core and evaporator core housing.



2. Install the blower motor vent tube to the heater core and evaporator core housing.

3. Connect the blower motor electrical connector.

4. Install the RH (Right Hand) lower instrument panel insulator and the 3 RH (Right Hand) lower instrument panel insulator retainers.
