Piston Ring-to-Groove Clearance

Piston Ring-to-Groove Clearance

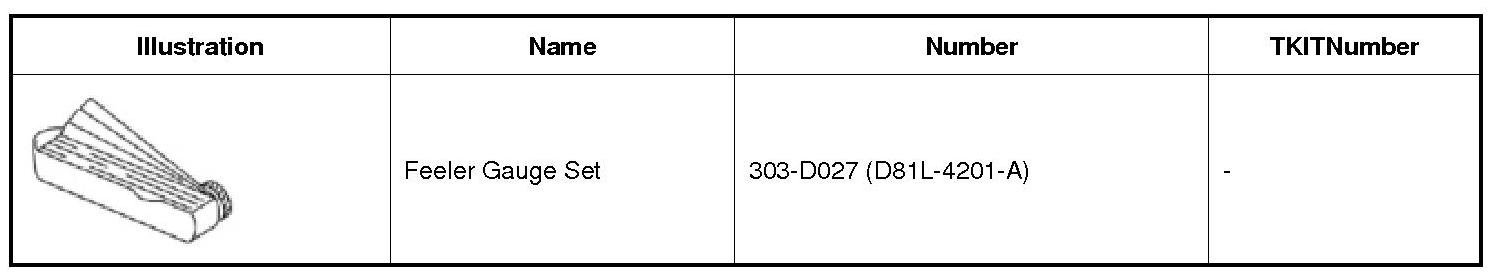

Special Tool(s)






General Procedure

NOTE: Refer to general specifications in Engine for the appropriate specification.

1. Inspect the piston for ring land damage or accelerated wear.





2. Using the Feeler Gauge Set, measure the piston ring-to-groove clearance.
