Removal and Replacement

Engine Mount

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. With the vehicle in NEUTRAL, position it on a hoist. REFER to Jacking and Lifting

2. Loosen the 4 retainers and remove the underbody shield.





3. Using a floor jack and a wooden block, support the engine.

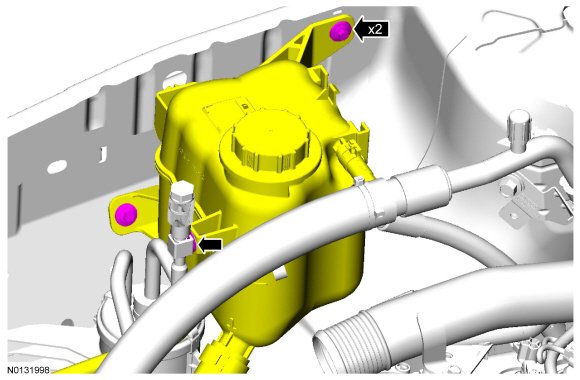

4. Remove the 2 bolts, the A/C (Air Conditioning) tube retaining clip and position the degas bottle aside.
- To install, tighten to 9 Nm (80 lb-in).





5. Remove the 4 nuts, the 3 bolts and the engine support insulator.
- To install, tighten bolts to 90 Nm (66 lb-ft).
- To install, tighten nuts to 125 Nm (92 lb-ft).





Installation

1. To install, reverse the removal procedure.
