Engine Block Heater: Service and Repair

Block Heater - 2.0L GTDI

WARNING: Before beginning any service procedure, REFER to Safety Warnings . Failure to follow this instruction may result in serious personal injury.

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. REFER to Cooling System Draining, Filling and Bleeding - 2.0L GTDI .

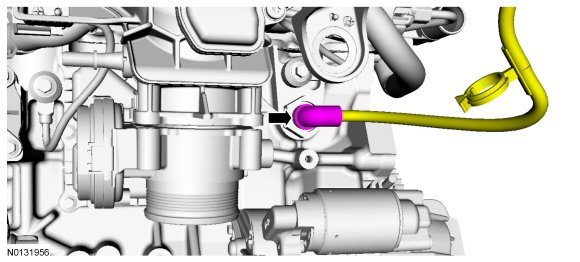

2. NOTICE: To install, route the block heater power cable away from hot or rotating components, or the cable can be damaged.

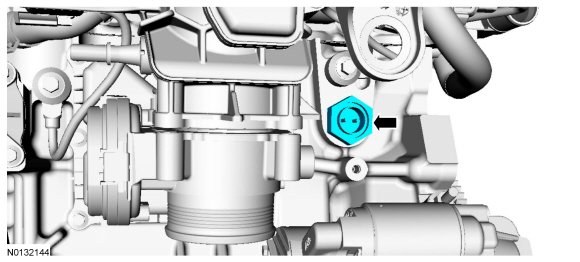

3.




40 Nm (30 lb-ft).

Installation

1. To install, reverse the removal procedure.

2. REFER to Cooling System Draining, Filling and Bleeding - 2.0L GTDI .
