Camshaft End Play

Camshaft End Play

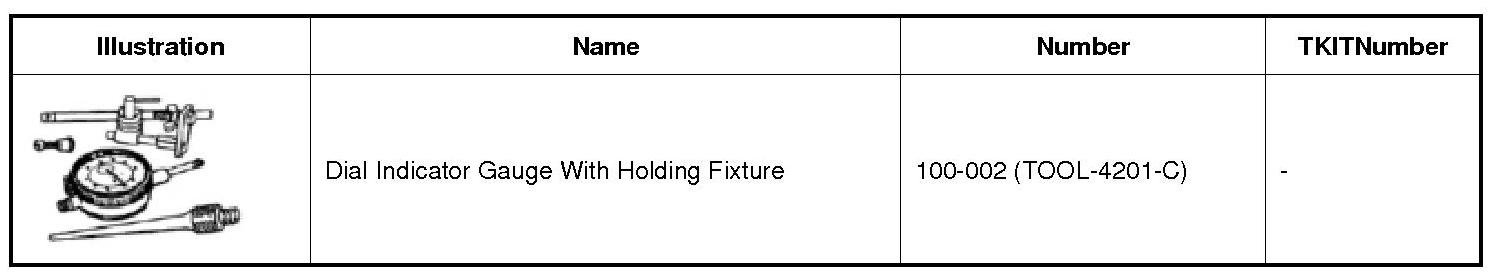

Special Tool(s)






General Procedure

NOTE: Refer to general specifications in Engine for the appropriate specification.

1. Using the Dial Indicator Gauge with Holding Fixture, measure the camshaft end play.

2. Position the camshaft to the rear of the cylinder head.

3. Zero the Dial Indicator Gauge.

4. Move the camshaft to the front of the cylinder head. Note and record the camshaft end play.

- If camshaft end play exceeds specifications, install a new camshaft and recheck end play.
- If camshaft end play exceeds specification after camshaft installation, install a new cylinder head.
