Ford Truck
>>
2012
>>
Explorer FWD L4-2.0L Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Heating and Air Conditioning
>>
Climate Control - DATC
Climate Control - DATC

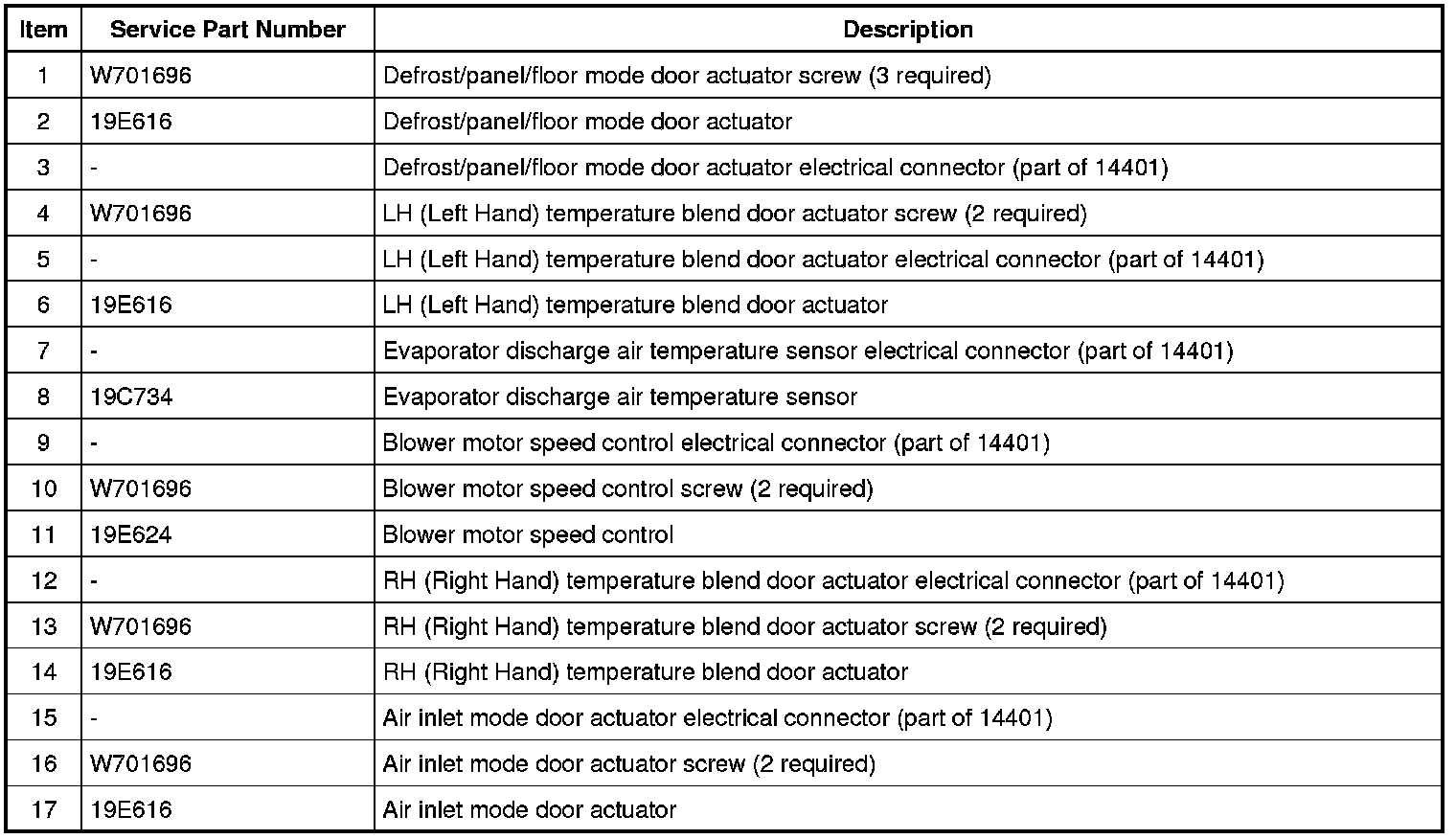

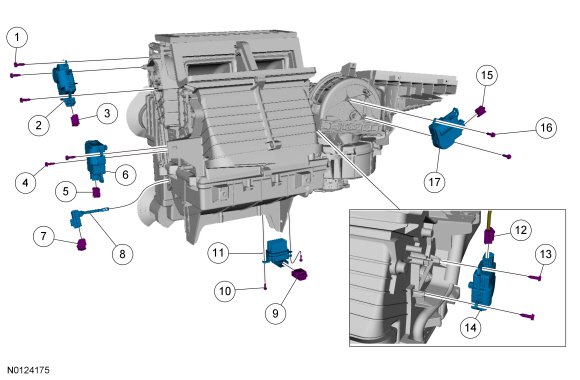

Control Components - Exploded View
Exploded View
