Exterior Moulding / Trim




Exterior Trim - Exploded View

Exploded View

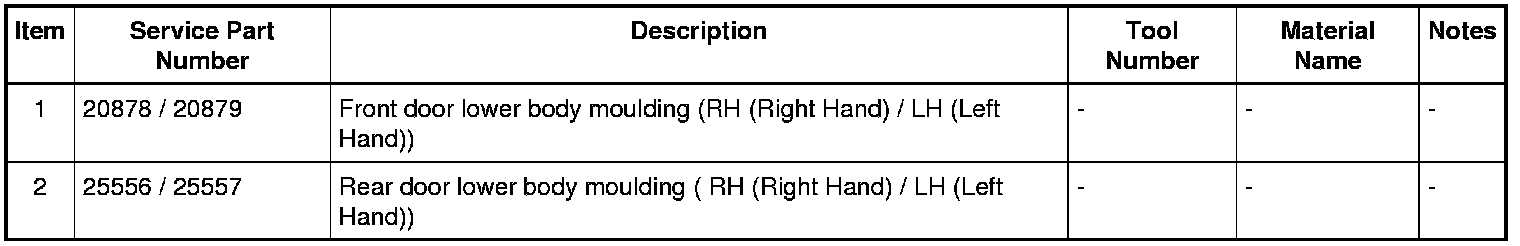

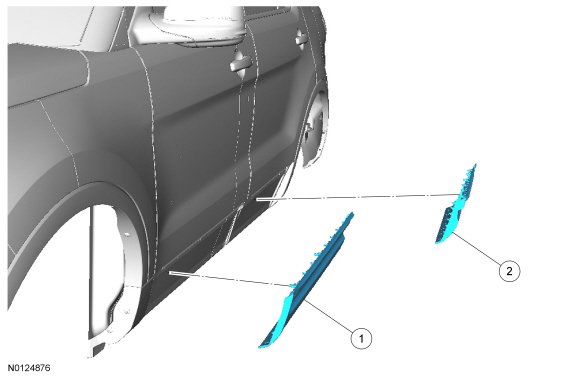

Body Side Moulding

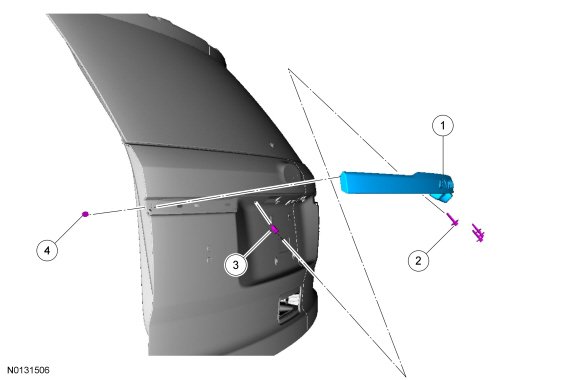

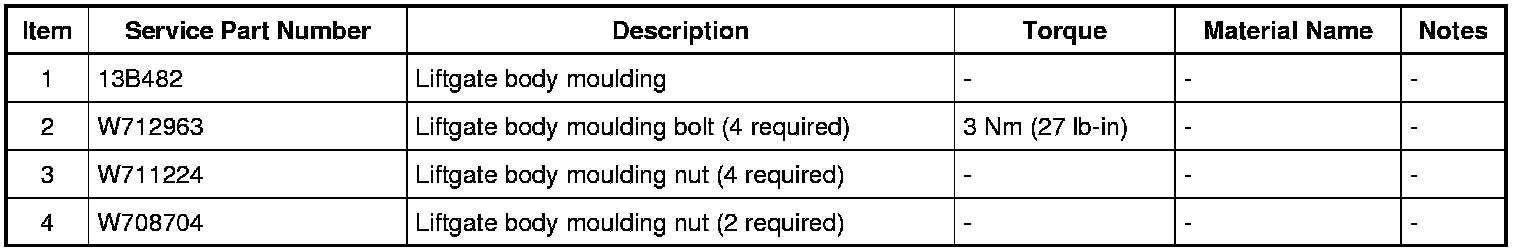

Liftgate Moulding
