Drive Belt Tensioner

Front End Accessory Drive (FEAD) - Exploded View

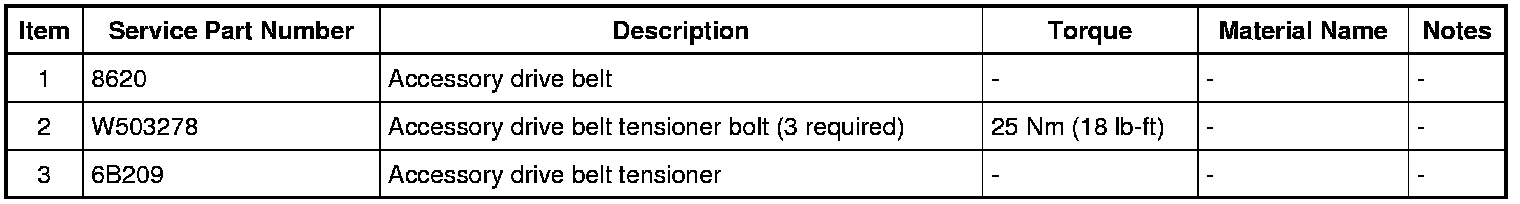

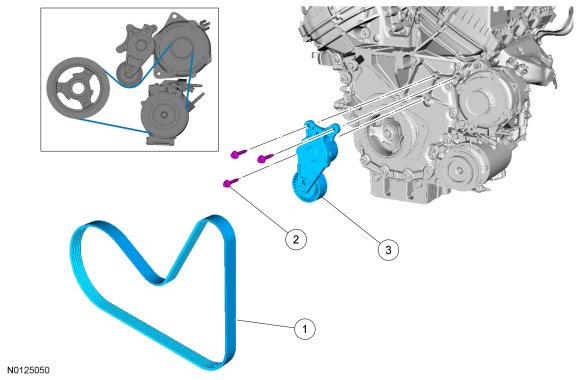

Exploded View

NOTICE: Under no circumstances should the accessory drive belt, tensioner or pulleys be lubricated as potential damage to the belt material and tensioner damping mechanism will occur. Do not apply any fluids or belt dressing to the accessory drive belt or pulleys.

NOTE: It is necessary to remove the RH (Right Hand) splash shield, REFER to Fender Splash Shield .

3.5L Ti-VCT










2.0L GTDI (Gasoline Turbocharged Direct Injection)

REFER to Component Location .
