Home >> Ford Truck >> 2012 >> Explorer FWD L4-2.0L Turbo >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Seat Control Module >> C4250A Power-fold Seat Module (PFSM)

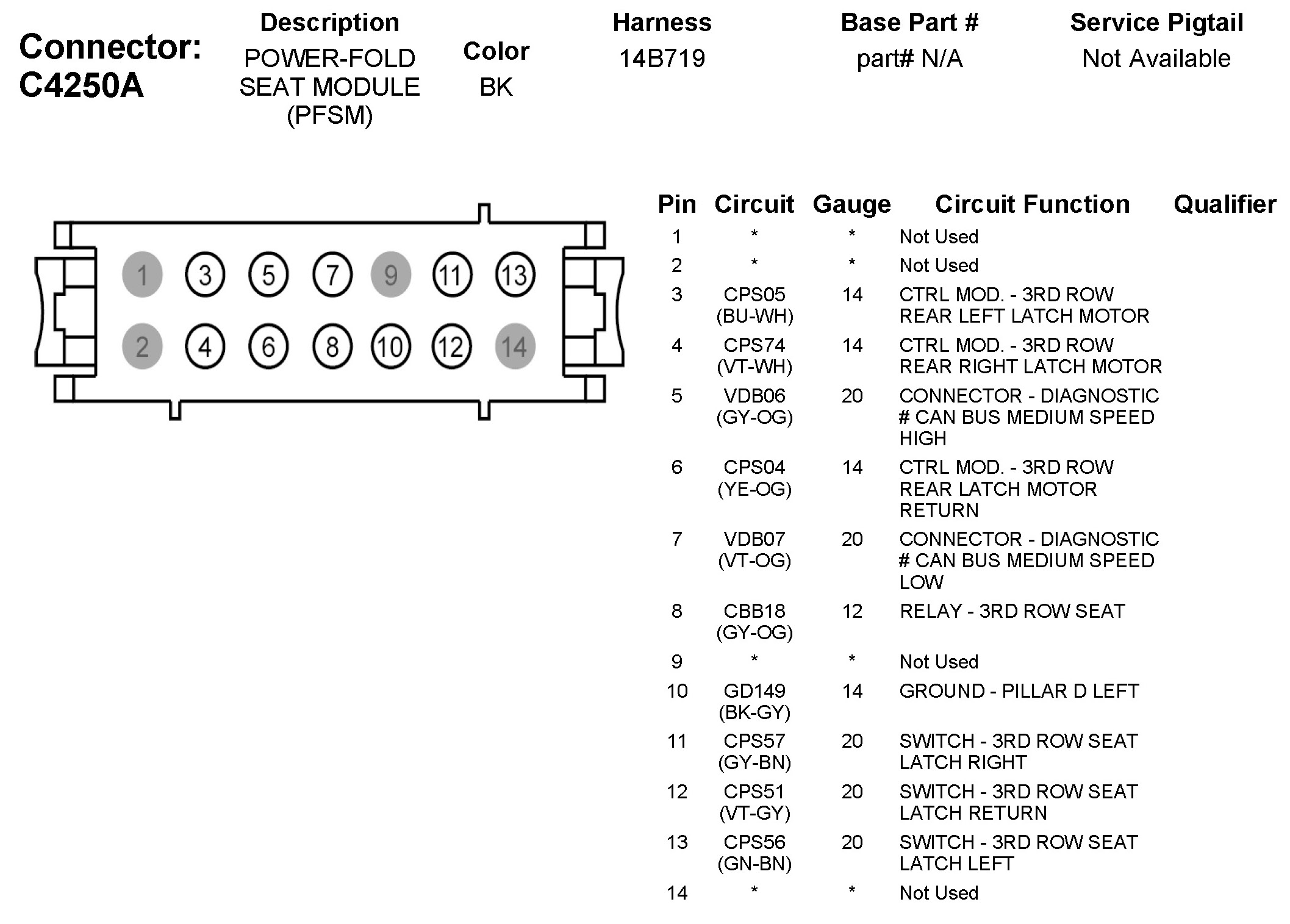

C4250A Power-fold Seat Module (PFSM)
