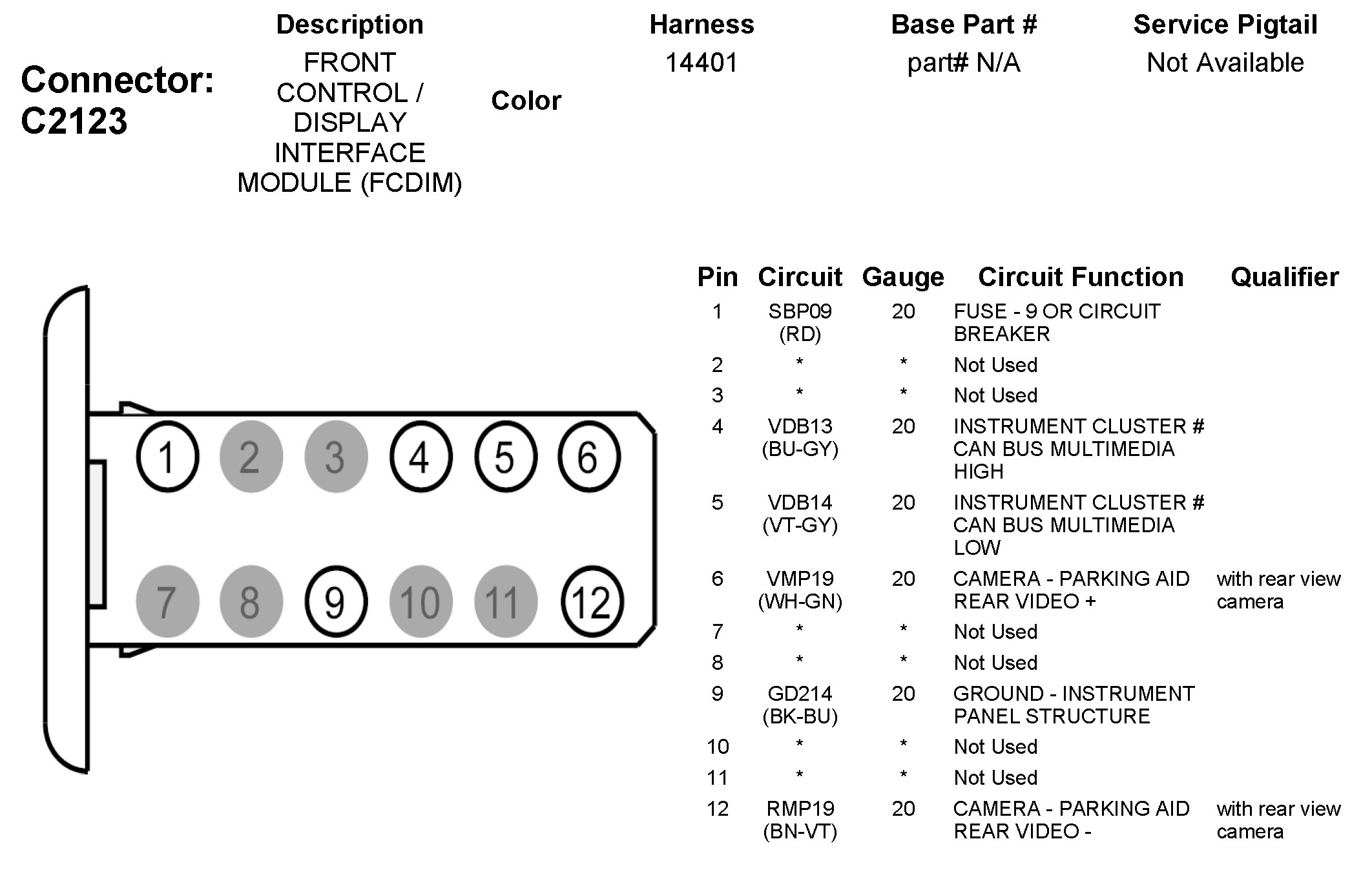

C2123 Front Control / Display Interface Module (FCDIM)
C2123 Front Control / Display Interface Module (FCDIM)
