Ford Truck
>>
2012
>>
Explorer FWD L4-2.0L Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Blind Spot Module
>>

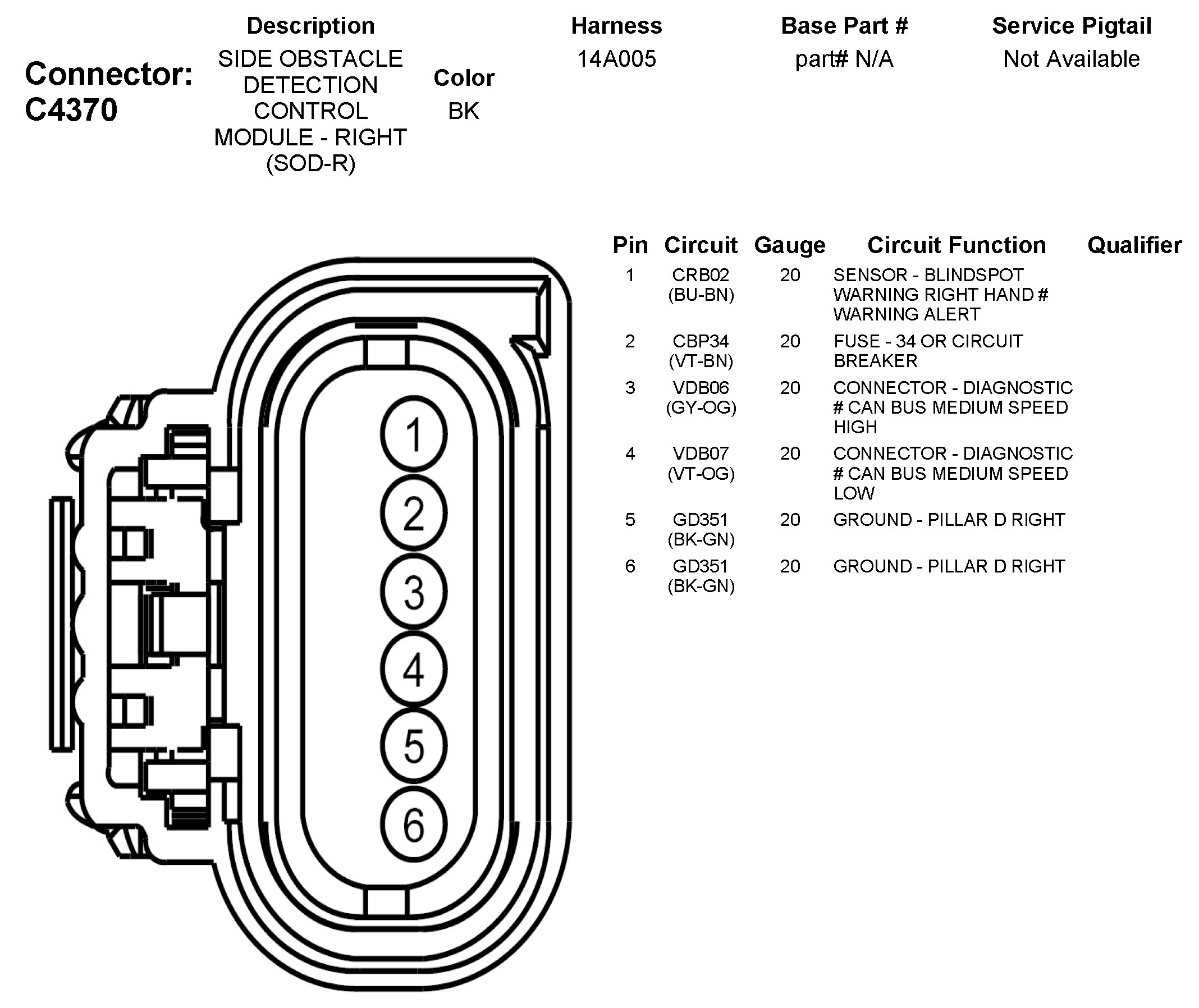

C4370 Side Obstacle Detection Control Module - Right (SOD-R)
C4370 Side Obstacle Detection Control Module - Right (SOD-R)
