Home >> Ford Truck >> 2012 >> Explorer FWD L4-2.0L Turbo >> Repair and Diagnosis >> Diagrams >> Connector Views >> Automatic Transmission/Transaxle >> System Diagram >> C168 6F50 / 6F55 Transmission

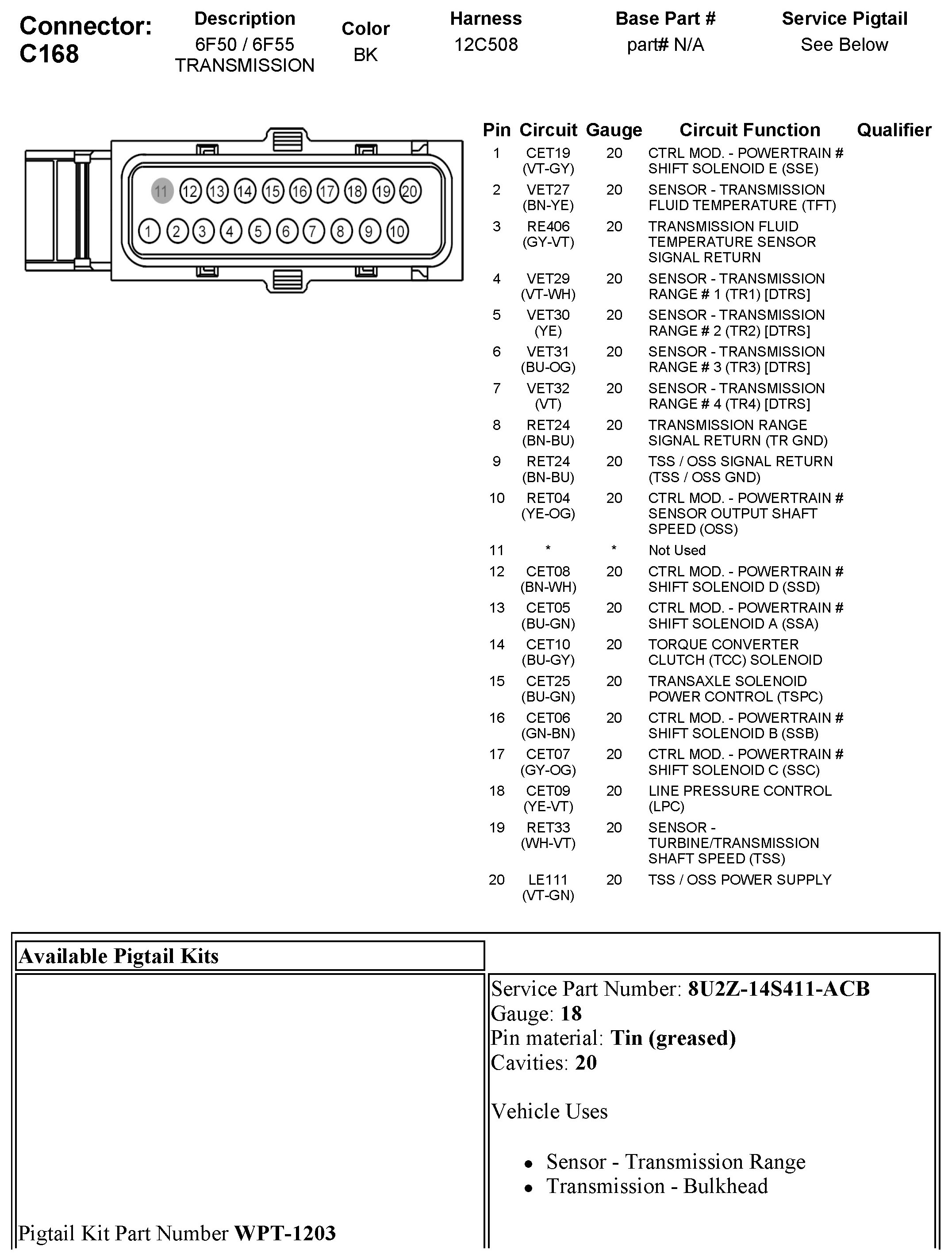

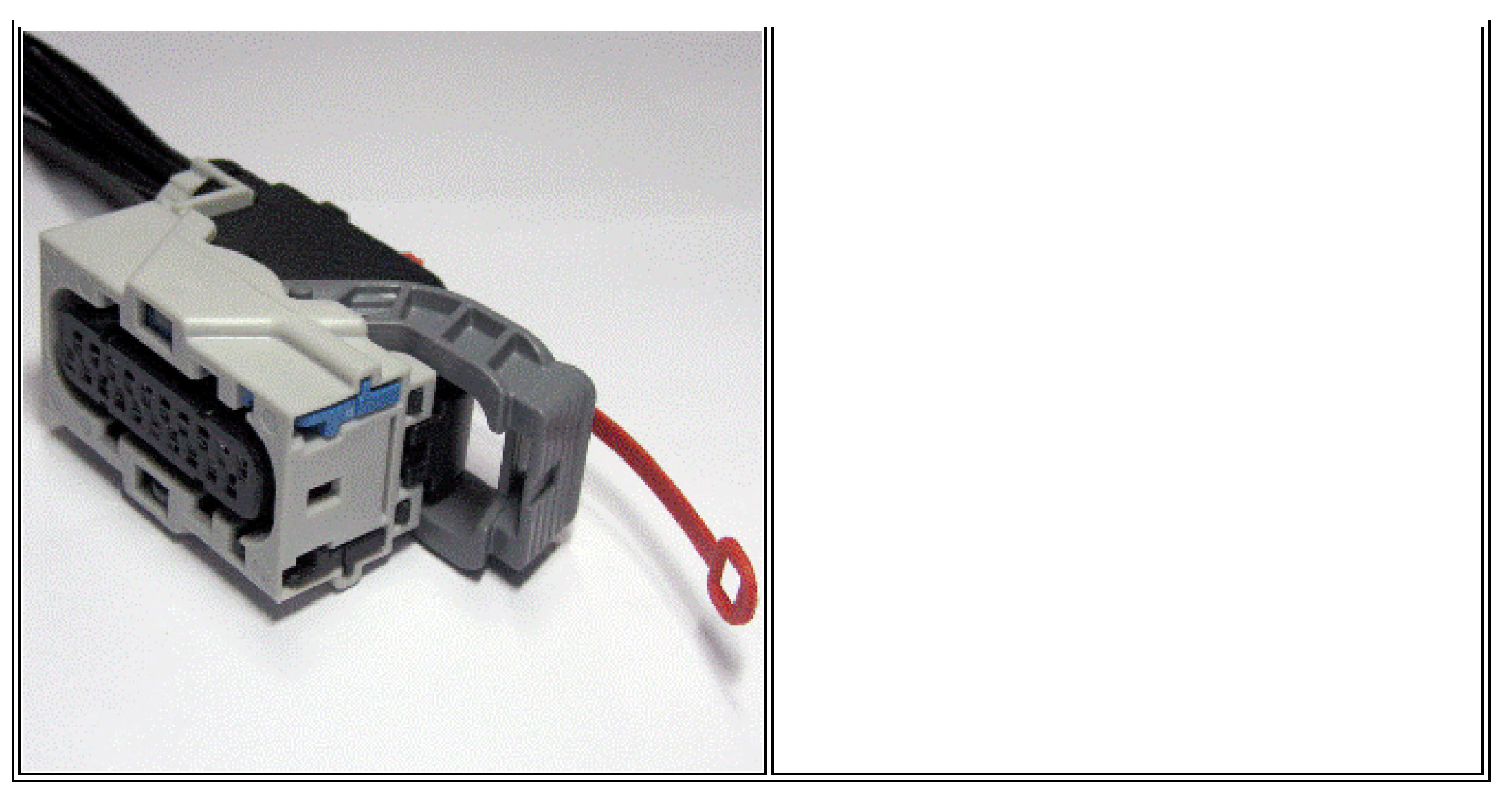

C168 6F50 / 6F55 Transmission
