System Operation
Cruise Control - Adaptive
System Operation

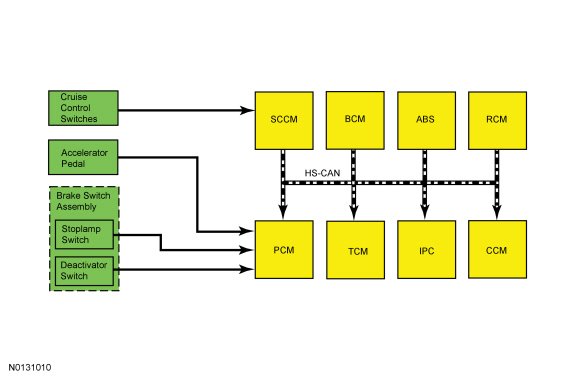

System Diagram
Network Message Chart

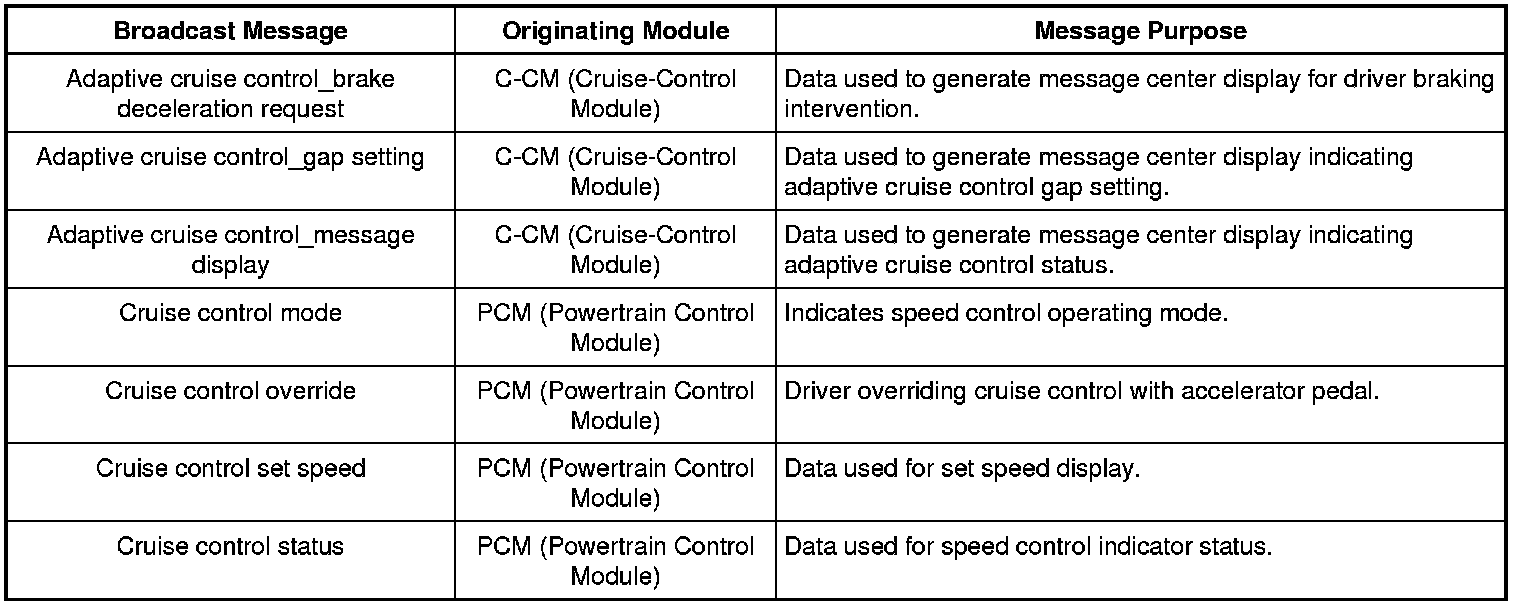

Module Network Input Messages - ABS (Anti-Lock Brake System) Module

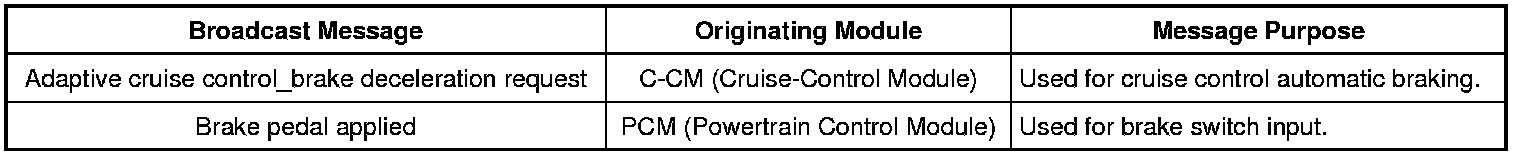

Network Input Messages - C-CM (Cruise-Control Module)
Network Input Messages - IPC (Instrument Panel Cluster)

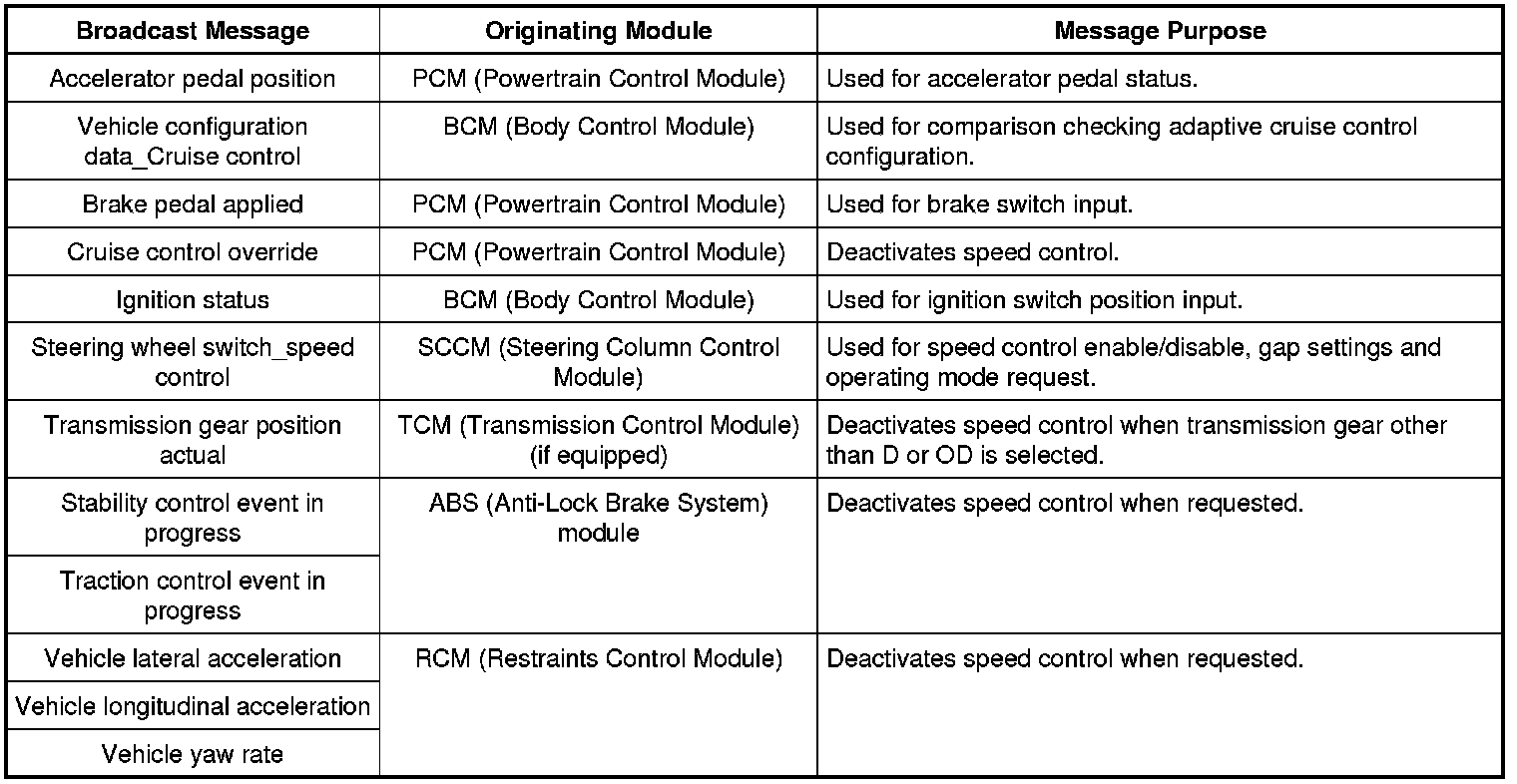

Network Input Messages - PCM (Powertrain Control Module)
Adaptive Cruise Control (ACC) Operation
NOTE: For a complete illustration of the adaptive cruise control indicators and graphic displays refer to the Owner's Literature.
The adaptive cruise control system functions much like the standard cruise control system. The adaptive cruise control system automatically adjusts the vehicle speed to maintain a set gap distance from the front of the vehicle and the vehicle in the same path of travel. When the adaptive cruise control system is on and is following a vehicle ahead or a vehicle enters the same driving lane, a follow vehicle graphic is displayed in the message center.
The adaptive cruise control system does not function if the vehicle speed is below 29 km/h (18 mph). As the vehicle slows down during automatic braking, the adaptive cruise control system discontinues braking at 29 km/h (18 mph). At that speed, an audible alarm sounds and the automatic braking from the ABS (Anti-Lock Brake System) module is released. The driver must take over the vehicle braking control.
The cruise control deactivator switch (which is integral to the stoplamp switch) is an additional safety feature. When the brake pedal is pressed, an electrical signal is sent from the stoplamp switch to the PCM (Powertrain Control Module) deactivating the cruise control system. Under increased brake pedal effort, the cruise control deactivator switch opens and removes the ground signal from the PCM (Powertrain Control Module) input circuit, releasing the throttle immediately deactivating the system.
The ABS (Anti-Lock Brake System) module monitors the yaw rate signal from the RCM (Restraints Control Module) and compares it to the wheel speed and steering wheel angle signals. If the ABS (Anti-Lock Brake System) module determines the yaw rate is invalid, the ABS (Anti-Lock Brake System) module disables the adaptive cruise control. The message center displays the message COLLISION WARNING MALFUNCTION and/or ADAPTIVE CRUISE MALFUNCTION.
The ABS (Anti-Lock Brake System) module estimates brake temperature by monitoring applied brake pressure over a period of time and sends a message to the C-CM (Cruise-Control Module) when the estimated temperature is above a given threshold. An alarm sounds and the adaptive cruise control system is deactivated until the estimated brake temperature within the ABS (Anti-Lock Brake System) module returns to cooler operating conditions. This condition can happen in a hilly or mountainous driving terrain.
Cruise Control Indicator
The adaptive cruise control indicator located in the IPC (Instrument Panel Cluster) illuminates gray and the previous gap setting and SET graphic is displayed indicating the system is in standby mode. This notifies the driver that the system is ready and the vehicle can be accelerated to the desired speed.
Steering Wheel Switch Function
The adaptive cruise control steering wheel mounted switches are momentary contact switches that toggle up and down for the cruise control switch state. Pressing and releasing the steering wheel cruise control ON/OFF switch turns the cruise control system on. Pressing up (SET+) and releasing the SET switch sets the vehicle's speed and stores the set speed in memory. The adaptive cruise control indicator illuminates green and the message center displays the set speed and gap setting graphic.
There are 2 ways to change the set speed. The first way is to accelerate or brake to the desired speed and press and release the SET cruise control switch until the desired set speed is shown on the message center. The second way is by tapping the SET+ or the SET- switch while in the set mode, increasing or decreasing the displayed set speed by 1.6 km/h (1 mph) per tap. If the respective button is pressed and held, the displayed set speed continues to increase or decrease until the button is released. The adaptive cruise control system may apply the brakes to slow the vehicle down to the new set speed. The set speed displays continuously in the message center while the adaptive cruise control system is active.
Pressing and releasing the OFF switch, or switching the ignition to OFF, turns the adaptive cruise control system off. The adaptive cruise control set speed memory is erased.
Pressing the brake pedal or pressing the RES/CNCL switch puts the adaptive cruise control system in standby mode and the last set speed is displayed in the message center with a strike through. Pressing the RES/CNCL button when the adaptive cruise control system is in standby mode causes the vehicle to accelerate to the last set speed. The set speed continuously displays in the message center while the adaptive cruise control system is active. The RES/CNCL button does not function if the OFF button is pressed, the ignition is cycled OFF, or if the current vehicle speed is below the minimum operational speed.
The adaptive cruise control system has the capability for the driver to change from adaptive cruise control to standard cruise control. The LH 5 way steering wheel switch is used to switch from the adaptive cruise control system to standard cruise control system with in the message center. For information on selecting the standard cruise control in the message center, refer to Owner's Literature. Once the driver has selected the standard cruise control in the message center, the adaptive cruise control indicator is replaced by the standard cruise control indicator. The vehicle no longer responds to lead vehicles or automatic braking. Upon the next vehicle ignition cycle, the vehicle defaults back to the adaptive cruise control system.
Gap Setting
When a vehicle ahead enters the same lane or a slower vehicle is ahead in the same lane, the vehicle speed adjusts automatically to maintain a preset distance gap. A bar graph graphic with 4 preset distance gap settings are displayed in the message center. Pressing up (decrease) or down (increase) on the steering wheel cruise control gap switch increases or decreases the distance from the vehicle ahead. If all of the bars are illuminated, this is the longest gap setting. If only one bar is illuminated that is the shortest gap setting.
The vehicle maintains the distance gap to the vehicle ahead until:
- the vehicle ahead accelerates to a speed above the set speed,
- the vehicle ahead moves out of the lane or out of view,
- the vehicle speed falls below 29 km/h (18 mph),
- or a new gap distance is set.
After each ignition cycle, the previous gap setting is remembered and the system is set to that gap setting.
The distance gap can be overridden by pressing the accelerator pedal. The follow vehicle graphic is not displayed in the message center and the GAP and set speed display turns gray. When the accelerator is released, the adaptive cruise control system returns to normal operation and the vehicle speed decreases to the set speed or a lower speed if following a vehicle ahead.
Deceleration Control
The C-CM (Cruise-Control Module) commands the ABS (Anti-Lock Brake System) module, which controls the brakes, to automatically apply the brakes to slow the vehicle to maintain a safe distance to the vehicle in front.
Cruise Control Deactivation Event Parameter Identifications (PIDs)
NOTE:When recording deactivation event PIDs (Parameter Identifications), turn the cruise control OFF immediately after the deactivation event occurs to prevent recording additional deactivation events which do not apply to the fault present.
NOTE:Cruise control deactivation PIDs (Parameter Identifications) are not available on the 2.0L GTDI (Gasoline Turbocharged Direct Injection) engine.
The PCM (Powertrain Control Module) has PIDs (Parameter Identifications) available, through the powertrain DataLogger, that indicate the event that caused the last cruise control deactivation. When the cruise control is turned ON, all current deactivation (or non-activation) conditions are recorded. When the cruise control is turned OFF, event recording stops. The recorded events are stored until the ignition is turned OFF.
The PCM (Powertrain Control Module) has 24 cruise control deactivation event PIDs (Parameter Identifications), identified as CRUISEOFF_00 through 24. The event PIDs (Parameter Identifications) should be read when deactivation or non-activation exists.
