Vacuum Pump: Service and Repair

Brake Vacuum Pump

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Remove the air cleaner outlet pipe. REFER to Intake Air System Components - Exploded View .

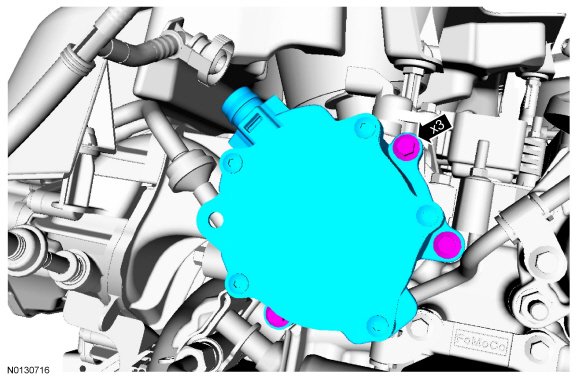

2.





3.
- 10 Nm (89 lb-in)





4. Visual check.





Installation

1. To install, reverse the removal procedure.
