Diagnostic Routine B

Diagnostic Routine B

Diagnostic Overview

Parking Brake Will Not Release

Normal Operation

When the parking brake control is fully applied and the pedal is pressed a second time, the ratchet mechanism in the parking brake control releases the tension on the parking brake cables and conduits. The springs on both rear brake calipers provide the force necessary to return the brake pads and cables to their released position.

Pinpoint Test

This pinpoint test is intended to diagnose the following:

- Front parking brake cable and conduit

- Parking brake control

- Rear parking brake cable and conduit

- Rear brake calipers

1. CHECK THE PARKING BRAKE CONTROL

1. Press the parking brake control pedal.

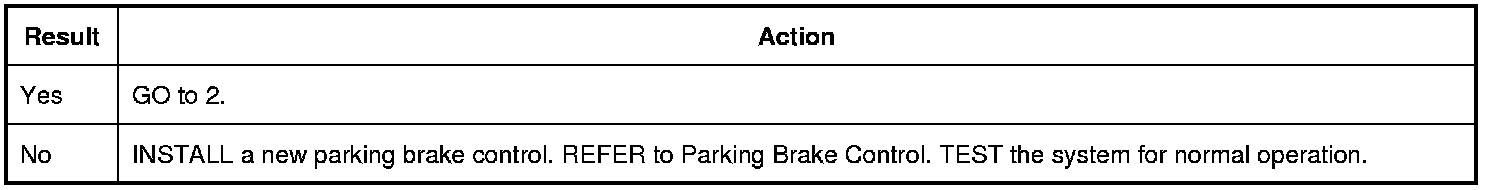

Does the parking brake control move?






2. CHECK THE REAR PARKING BRAKE CABLES

1. Disconnect the LH (Left Hand) and RH (Right Hand) cables from the front cable equalizer.

2. Disconnect the LH (Left Hand) and RH (Right Hand) parking brake cables from the subframe brackets and the brake calipers.

3. While holding the rear cable conduit, attempt to slide the rear cable inside the conduit.

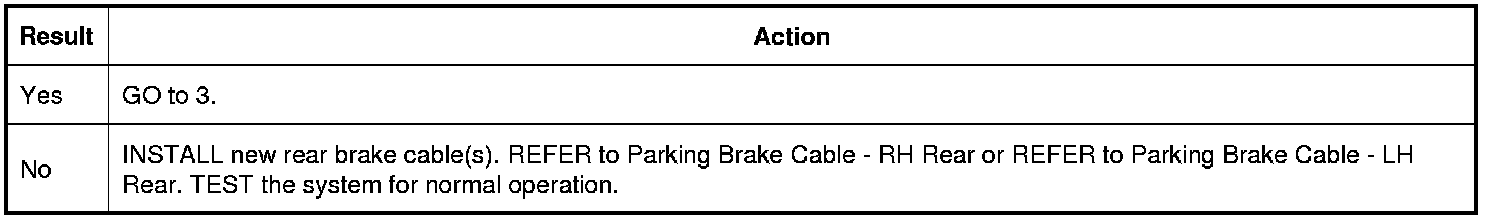

Does the cable slide freely inside the conduit?






3. CHECK THE REAR BRAKE CALIPERS AND HARDWARE

1. Inspect the brake calipers, actuators and return springs.

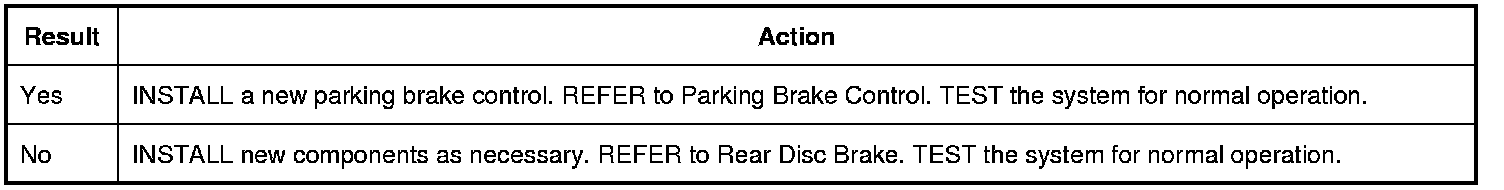

Are the components in good condition?
