Ford Truck
>>
2012
>>
Explorer FWD L4-2.0L Turbo
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Hydraulic System
>>
Specifications
>>
Mechanical Specifications
Mechanical Specifications
Hydraulic Brake Actuation

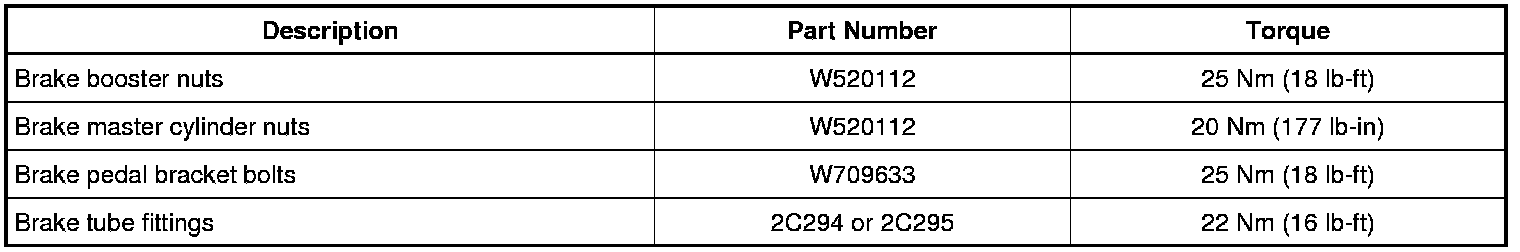

Torque Specifications
