Rear Disc Brake

Brake Flexible Hose

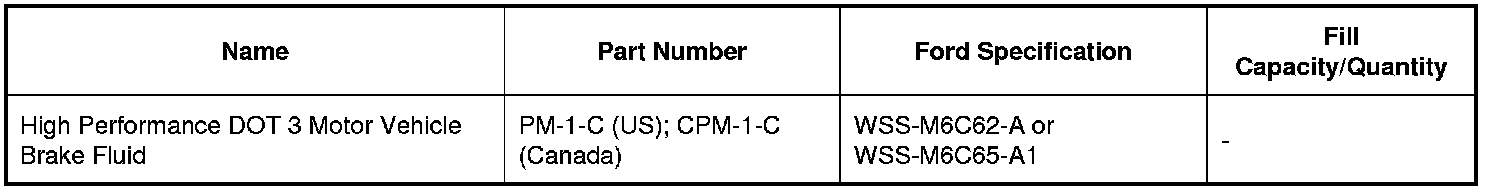

Material(s)






Removal

WARNING: Do not use any fluid other than clean brake fluid meeting manufacturer's specification. Additionally, do not use brake fluid that has been previously drained. Following these instructions will help prevent system contamination, brake component damage and the risk of serious personal injury.

WARNING: Carefully read cautionary information on product label. For EMERGENCY MEDICAL INFORMATION seek medical advice. In the USA or Canada on Ford/Motorcraft products call: 1-800-959-3673. For additional information, consult the product MSDS (Material Safety Data Sheet), if available. Failure to follow these instructions may result in serious personal injury.

NOTICE: Do not spill brake fluid on painted or plastic surfaces or damage to the surface may occur. If brake fluid is spilled onto a painted or plastic surface, immediately wash the surface with water.

NOTICE: Do not allow the brake fluid to come in contact with the adhesive backing on the brake pads. This may prevent the brake pad adhesive surface from bonding with the brake caliper. If brake fluid is spilled onto the brake pads, new pads must be installed.

1. With the vehicle in NEUTRAL, position it on a hoist. REFER to Jacking and Lifting.

2. Disconnect the brake tube fitting from the brake flexible hose.

3. Remove the retaining clip from the brake flexible hose.

4. Disconnect the brake flexible hose from the brake caliper.

Installation

1. Connect the brake flexible hose to the brake caliper.
- Tighten to 25 Nm (18 lb-ft).

2. Install the retaining clip for the brake flexible hose.

3. Connect the brake tube fitting to the brake flexible hose.
- Tighten to 17 Nm (150 lb-in).

4. Bleed the brake caliper. REFER to Component Bleeding .
