Brake Caliper Anchor Plate

Brake Caliper Anchor Plate

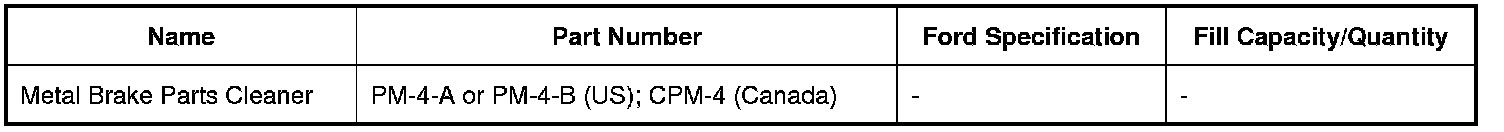

Material(s)






Removal

1. Remove the brake pads. REFER to Brake Pads .

2. Remove and discard the 2 brake caliper anchor plate bolts and remove the brake caliper anchor plate.

Installation

1. Using specified brake parts cleaner, clean any residual sealant from the wheel knuckle and the brake caliper anchor plate.

2. Position the brake caliper anchor plate on the wheel knuckle and install 2 new bolts.
- Tighten to 150 Nm (111 lb-ft).

3. Install the brake pads. REFER to Brake Pads .
