Spoiler: Service and Repair

Spoiler

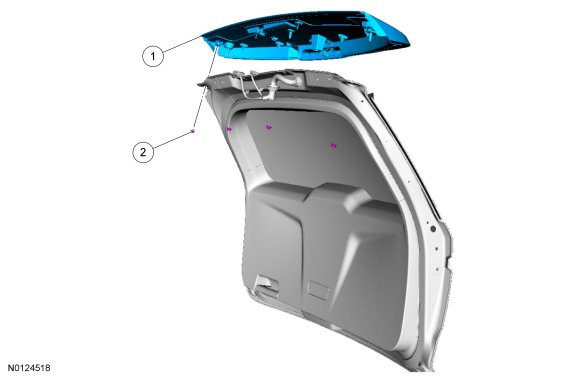

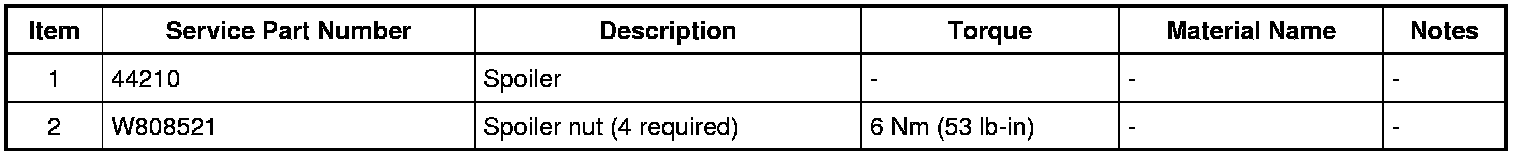

Exploded View










Removal

1. Disconnect the 7 liftgate moulding clips and remove the liftgate moulding.

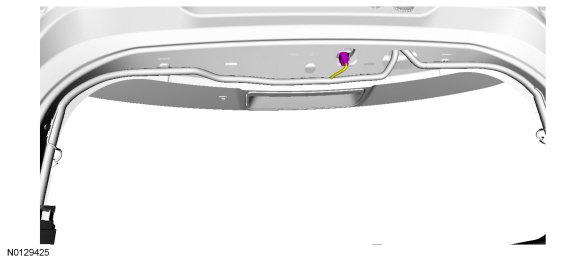

2. Disconnect the high mounted stoplamp electrical connector.

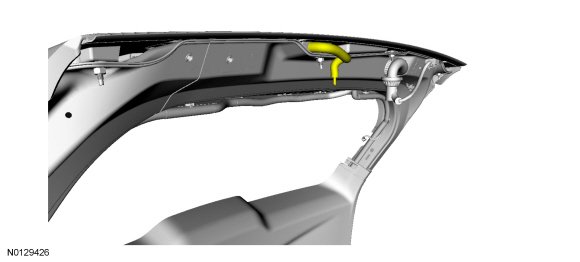

3. Disconnect the rear window washer hose.

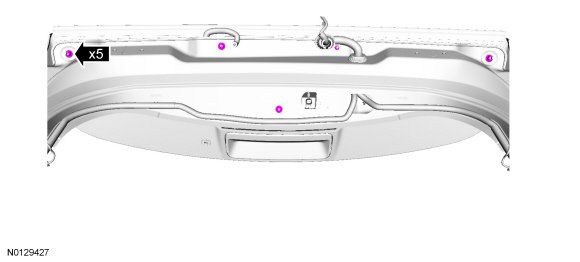

4. Remove the 5 spoiler nuts.

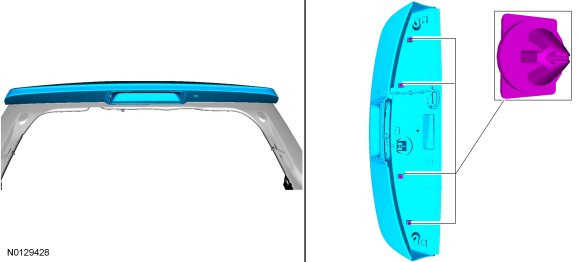

5. Pushing up firmly on the rear of the spoiler, disconnect the 4 spoiler clips and remove the spoiler.





Installation

1. NOTICE: Transfer any clips that stay attached to the body back onto the spoiler prior to installation.

To install, reverse the removal procedure.

- Transfer parts as necessary.
