FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Ford Truck
>>
2012
>>
Explorer FWD L4-2.0L Turbo
>>
Repair and Diagnosis
>>
Body and Frame
>>
Seats
>>
Specifications
>>
Seating - 2nd Row
Seating - 2nd Row
Seating - 2nd Row

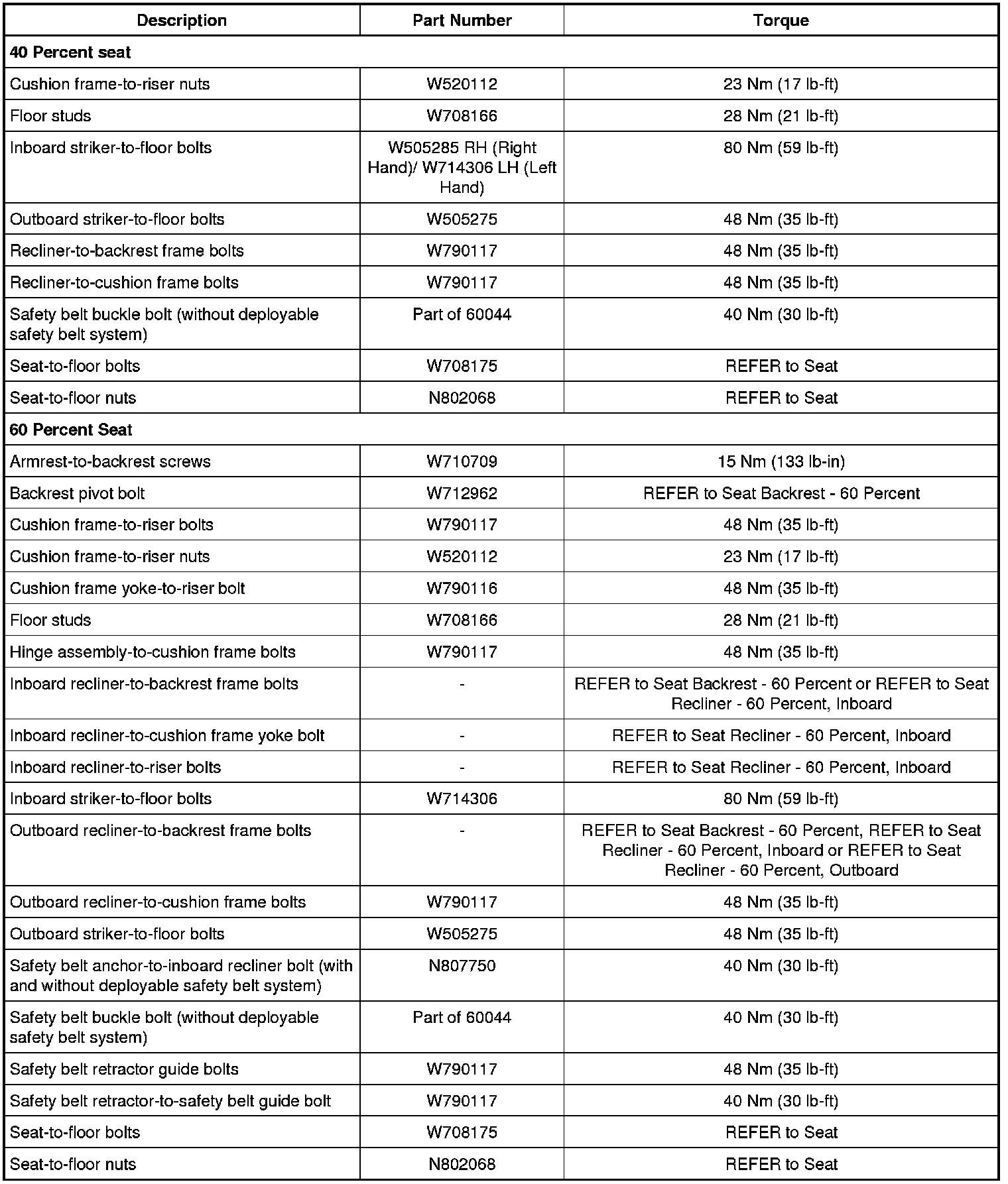

Torque Specifications
