Seat - Exploded View

Seat - Exploded View

Exploded View

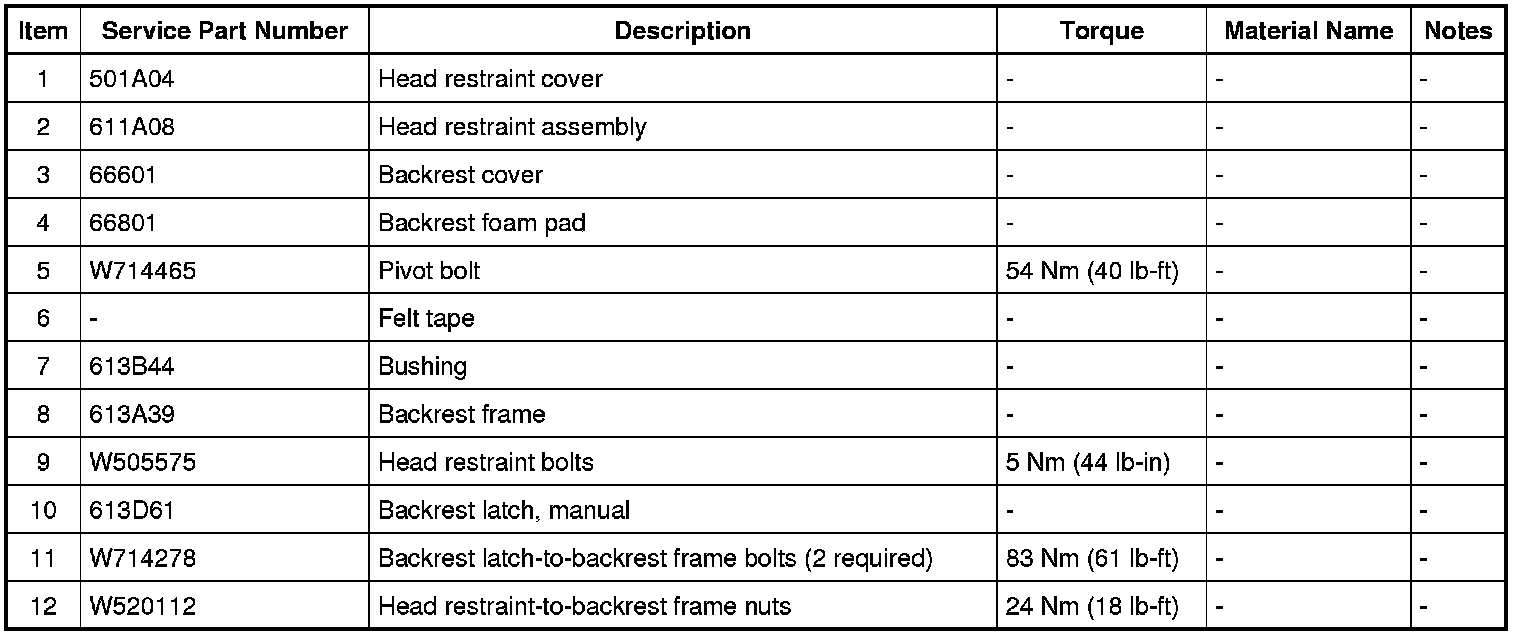

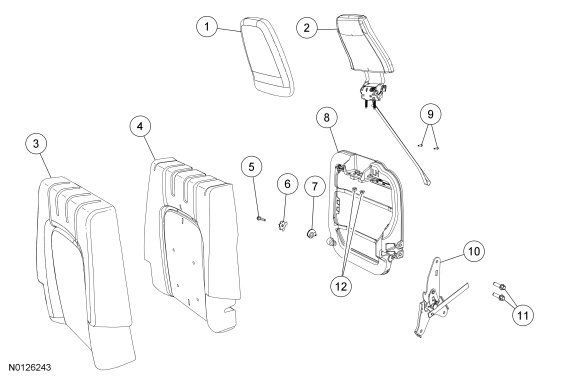

Backrest, Manual

NOTE: LH (Left Hand) shown RH (Right Hand) similar.

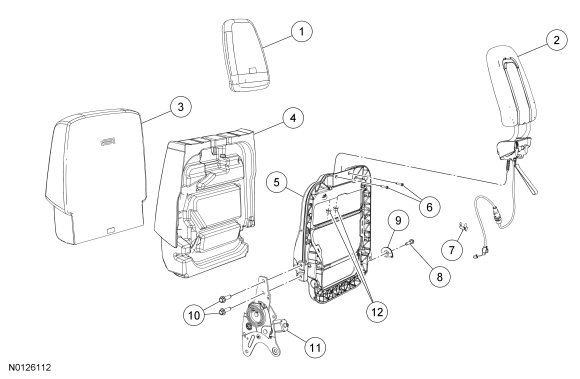

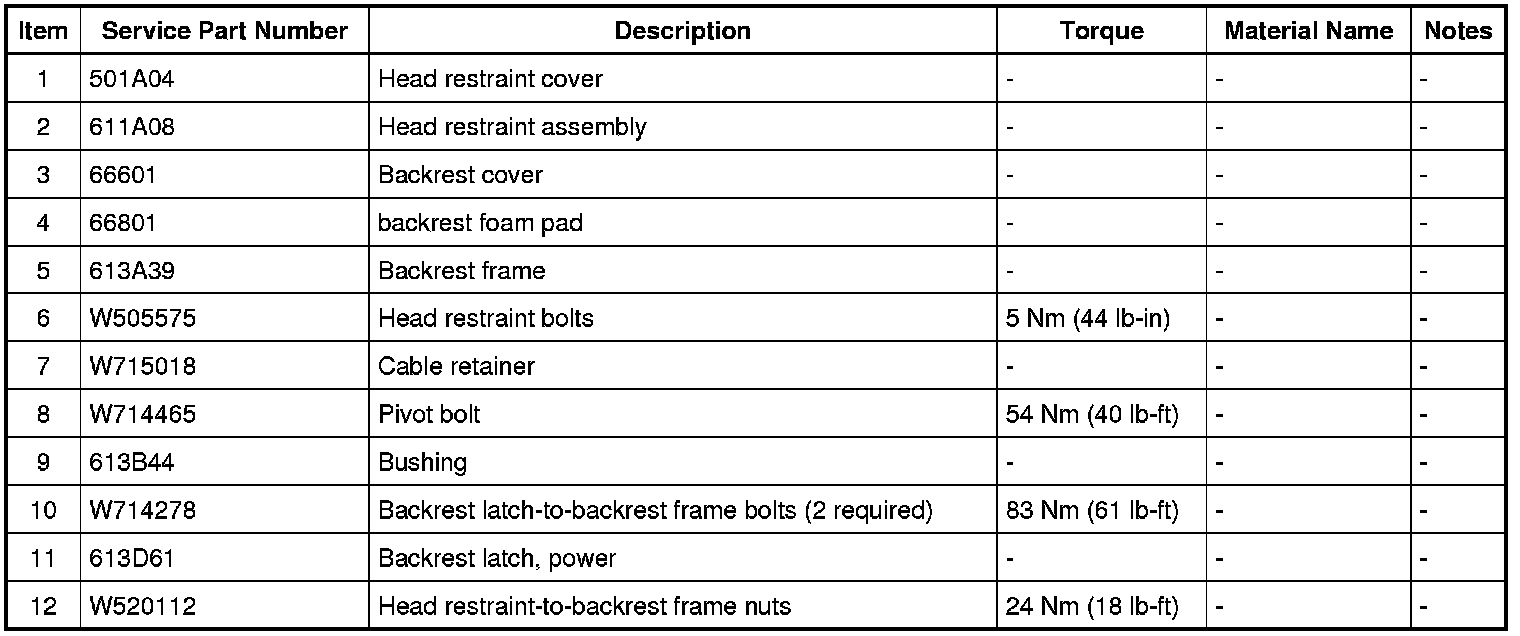

Backrest, Power

NOTE: LH (Left Hand) shown RH (Right Hand) similar.

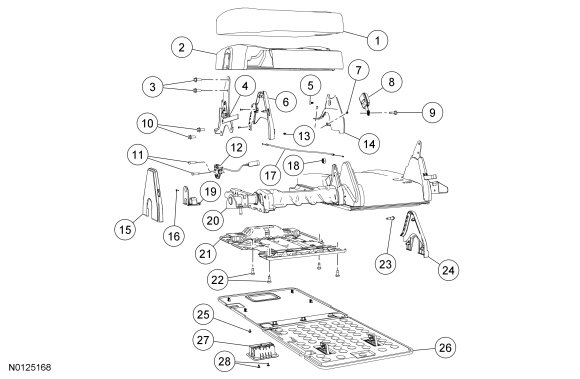

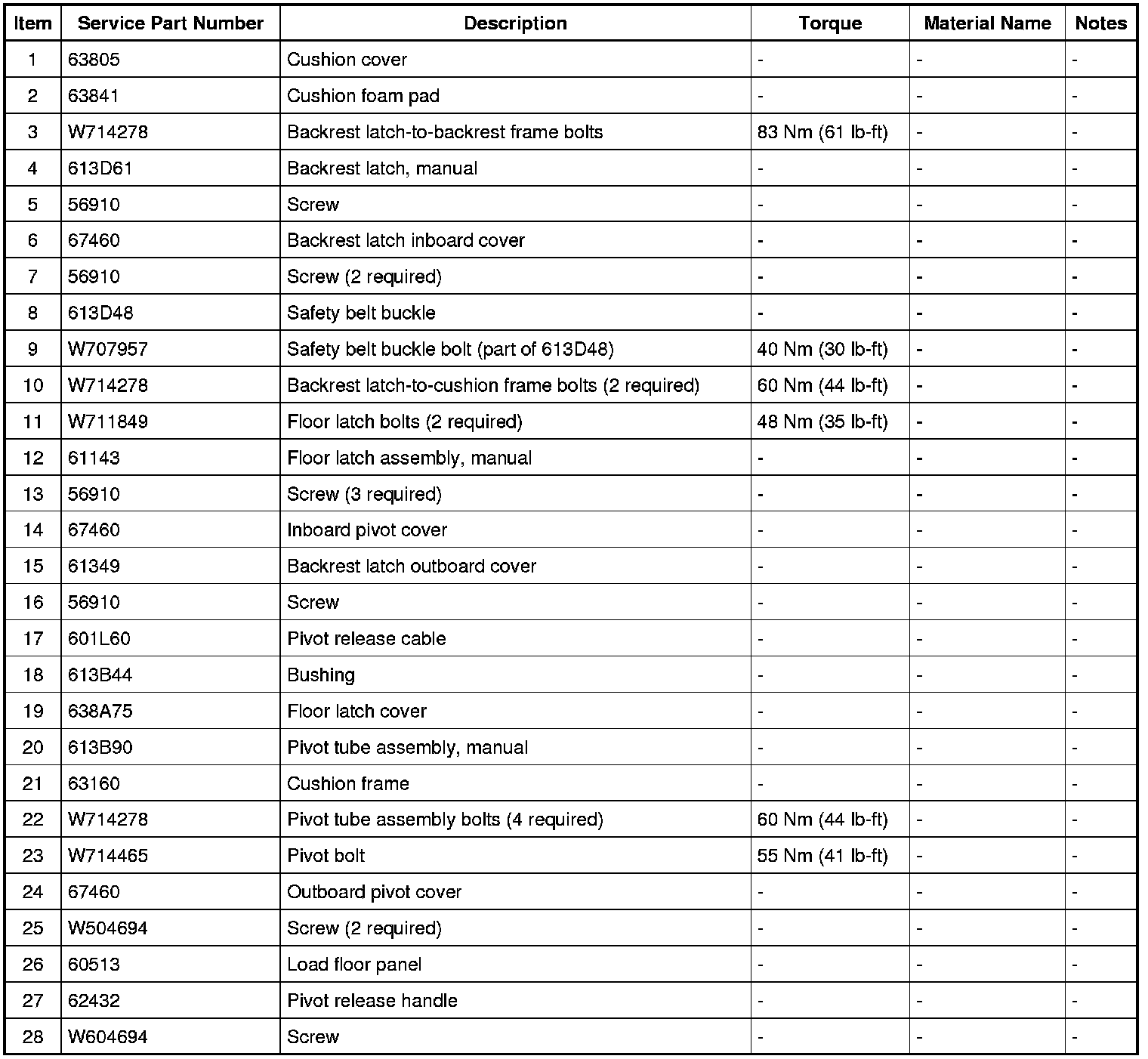

Cushion, Manual

NOTE: LH (Left Hand) shown RH (Right Hand) similar.

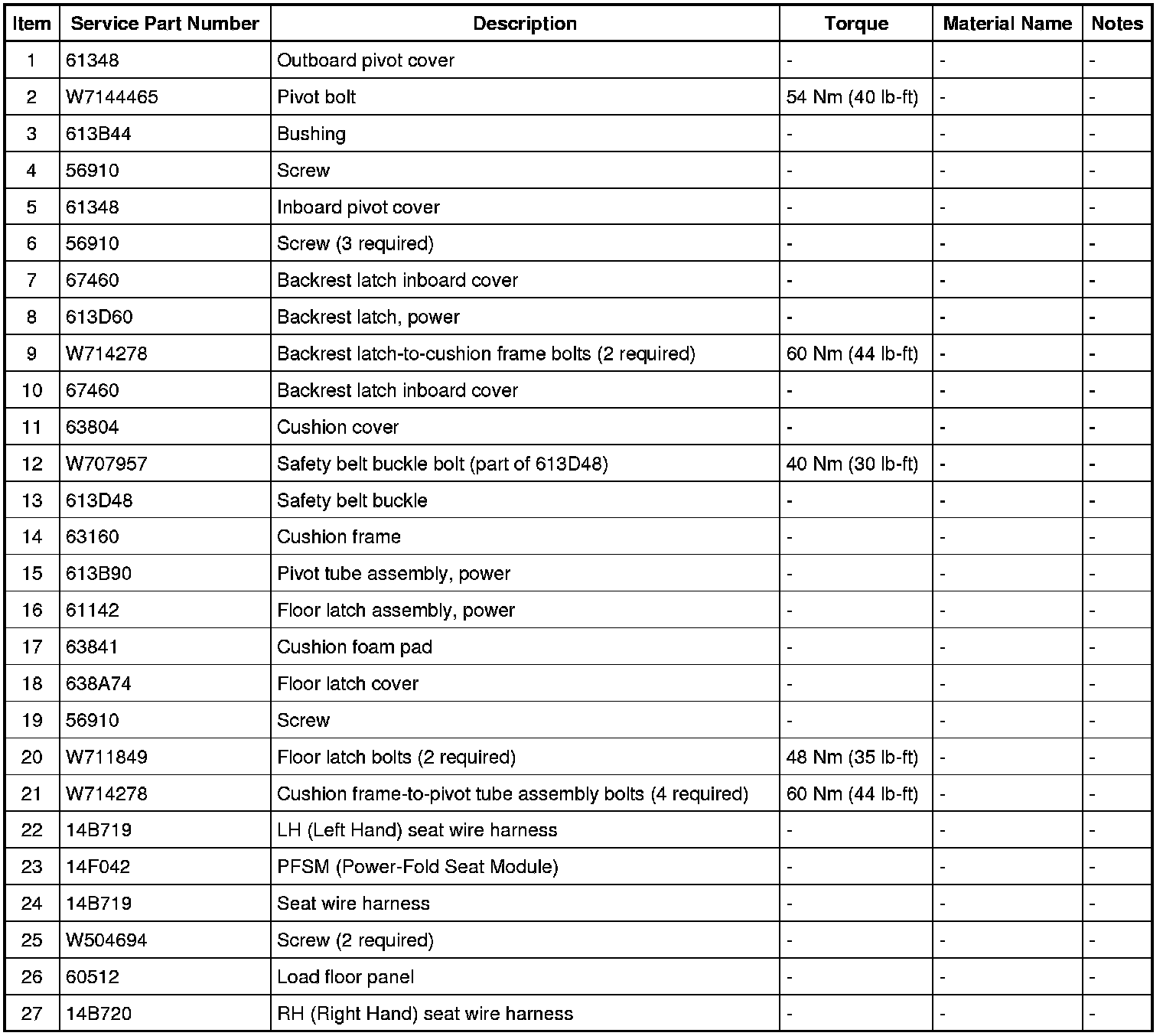

Cushion, Power

NOTE: RH (Right Hand) shown LH (Left Hand) similar.
