Procedures

Manual Override of Inoperative Power Seat - 3rd Row

General Procedure

1. NOTE: RH (Right Hand) seat shown, LH (Left Hand) similar.
To release an inoperable seat latch:

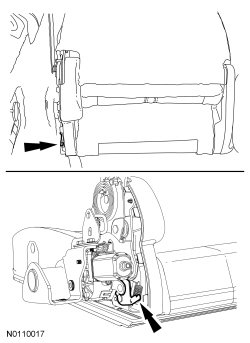

1. Push the cushion cover and foam pad back and locate the power seat latch by-pass cut-out in the bracket.

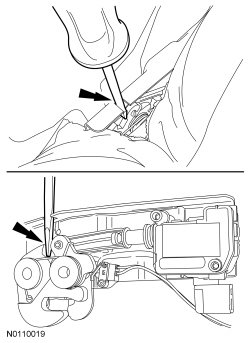

2. Slide a screwdriver through the latch bracket until it bottoms out on the latch mechanism. Make sure the screwdriver is straight up and down and not on an angle or the screwdriver will not come in contact with the latch release lever.




3. Pivot the screwdriver handle toward the front of the seat, releasing the latch.





2. NOTE: Make sure the wire harness is not damaged while positioning the release lever or the power-fold seat will not operate.

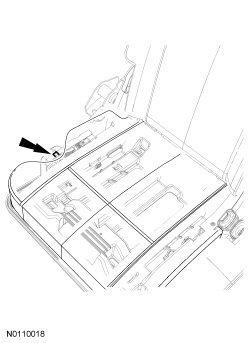

NOTE: LH (Left Hand) seat shown, RH (Right Hand) similar.
To disengage an inoperable stow motor:

1. Pry to release the clips and remove the backrest latch outer cover.




2. Position the pivot release lever down and pivot the seat away from the floor striker.
