Seat Cushion Cover - 60 Percent

Seat Cushion Cover - 60 Percent

Removal

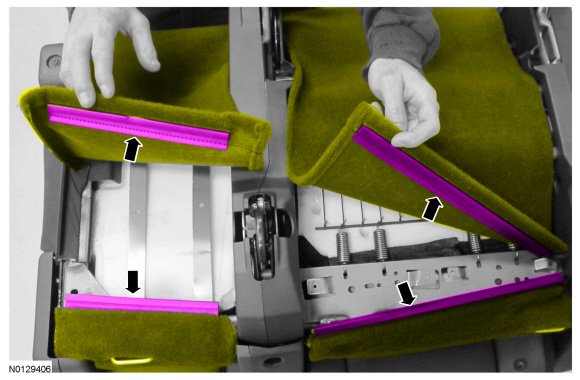

1. From under the seat, detach the cushion cover J-clips.





2. From under the seat, detach the seat cover retainer.





3. Pull the cushion cover outboard retainer out from between the cushion frame and riser.





4. Release the 2 cushion cover retainers from the rear of the cushion frame.





5. NOTICE: Use care when separating the cushion cover wires from the cushion foam pad clips or the clips can be torn from the cushion foam pad.

Turn the cushion cover inside out, disengage the cushion cover wires from the cushion foam pad clips and remove the cushion foam pad.

Installation

1. To install, reverse the removal procedure.
