Seat Cushion Cover - 40 Percent

Seat Cushion Cover - 40 Percent

Removal

NOTE: For parts identification and location, REFER to Seat - Exploded View .

1. Open the cushion cover.

1. Release the clip and separate the strut.

2. Separate the J-clips.

3. Separate the hook-and-loop strips.

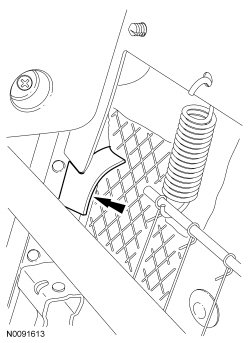

2. From under the seat, pull the 4 cushion cover retainers (1 shown) out from between the cushion frame and riser.





3. Detach the clips and remove the cushion cover from the cushion foam pad.

- At installation, make sure the lower anchor and tether for children wires at the rear of the cushion frame are positioned through the cushion cover and accessible for use after installation.

Installation

1. To install, reverse the removal procedure.
