Seat Backrest - 40 Percent - Disassembly and Assembly

Seat Backrest - 40 Percent

Disassembly

NOTE: For parts identification and location, REFER to Seat - Exploded View .

1. Remove the seat backrest. REFER to Seat Backrest - 40 Percent .

2. Remove the 2 head restraint guides sleeves. REFER to Head Restraint Guide Sleeve .

3. With the backrest folded down, release the backrest cover lower J-clips and the 2 J-clips attached to the hardback panel.

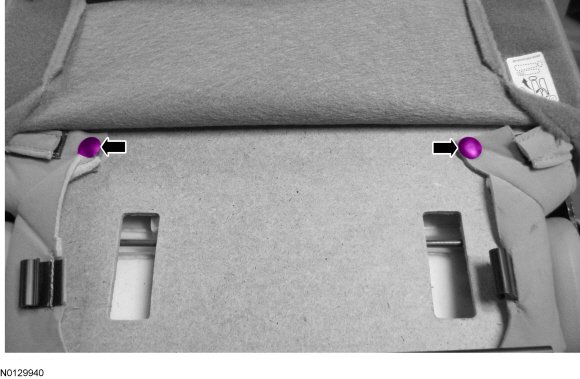

4. Remove the 2 pin-type retainers from the hardback panel.





5. NOTICE: Use care when separating the backrest cover from the hook-and-loop strip, or the hook-and-loop strip may be torn from the backrest foam pad.

Separate the hook-and-loop strips, invert the backrest cover and remove the hog-rings.

6. NOTICE: Use care when separating the backrest cover from the hook-and-loop strip, or the hook-and-loop strip may be torn from the backrest foam pad.

Separate the hook-and-loop strips, invert the backrest cover, remove the hog rings and the backrest cover.

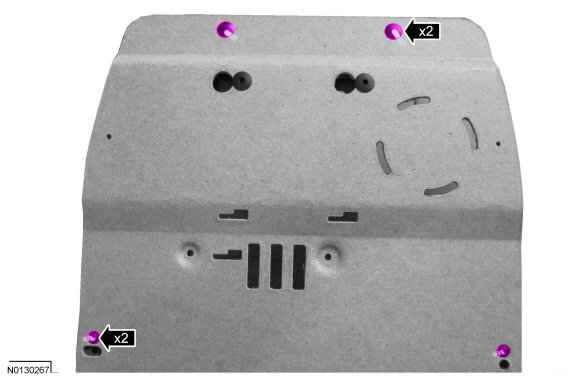

7. Remove 2 screws, 2 pin-type retainers, slide the hardback panel to the side and remove it.





Assembly

1. To assemble, reverse the disassembly procedure.
