Seat Cushion Cover

Seat Cushion Cover

Removal

NOTICE: The passenger seat is equipped with an OCS (Occupant Classification System) bladder system, to prevent system failure, it is necessary to carry out the OCS (Occupant Classification System) reset when a front passenger seat cushion is disassembled, a new cushion cover is installed or an OCS (Occupant Classification System) service kit is installed. A scan tool is used to carry out the OCS (Occupant Classification System) reset.

NOTE: For component identification and locations, REFER to Seat - Exploded View, Front .

1. Remove the front seat backrest. For additional information, REFER to Seat Backrest .

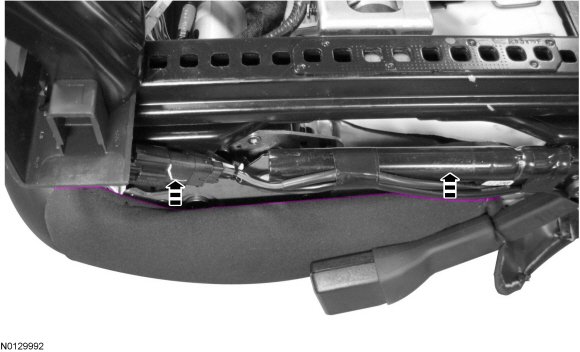

2. Disengage the cushion cover retainer from the cushion frame and seat track.

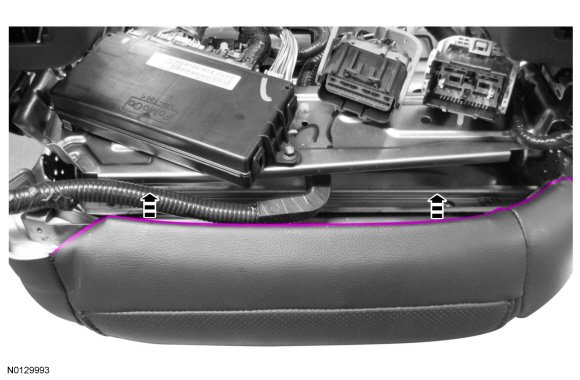

3. Lift upward and disengage the inboard cushion cover retainers from the cushion frame and seat track.





4. Lift upward and disengage the front cushion cover retainers from the cushion frame and seat track.

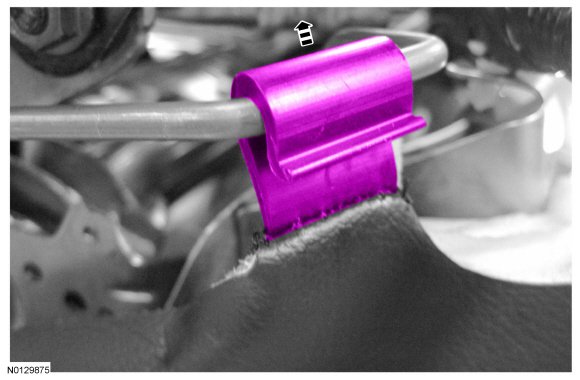

5. NOTICE: Use care when separating the cushion cover wires from the cushion foam pad clips or the clips can be torn from the cushion foam pad.

Turn the cushion cover inside out, disengage the cushion cover wires from the retainers in the cushion foam pad and remove the cushion cover.

Installation

1. Position the cushion cover and engage the wires into the retainers of the cushion foam pad.

1. If equipped with heated seats, make sure the cushion heater mat windows are trapped between the cushion cover wire and cushion foam pad retainers.

2. Engage the cushion cover retainers to the cushion frame and seat track.

1. Do not engage the outboard cushion cover retainers, if equipped with manual lumbar.

3. Install the front seat backrest, for additional information, REFER to Seat Backrest .
