Seat Backrest - Disassembly and Assembly

Seat Backrest

Disassembly

NOTE: For parts identification and location, REFER to Seat - Exploded View, Front .

1. Remove the seat backrest cover. REFER to Seat Backrest Cover .

2. If equipped, disconnect the backrest heater mat electrical connector and separate the pin-type retainer.

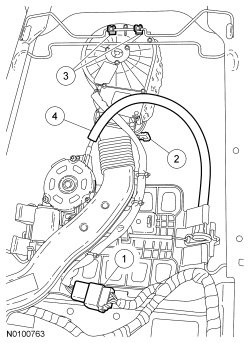

3. If equipped, remove the backrest TED (Thermo-Electric Device).

1. Disconnect the electrical connector and separate the pin-type retainer.

2. Disengage the TED (Thermo-Electric Device) from the backrest frame wire.

3. Disengage the backrest TED (Thermo-Electric Device) from the backrest foam pad wire.

4. Slide the TED (Thermo-Electric Device) out from between the power lumbar and cable.






4. If equipped, remove the manual lumbar.

1. Remove the manual lumbar control cable retainer.

2. Disengage the manual lumbar retainers.






5. If equipped, remove the power lumbar.

1. Disconnect the motor and disengage the retaining clips.






6. Remove the 2 pin-type retainers.

7. Remove the backrest foam pad from the backrest frame.

Assembly

1. Position the backrest frame assembly into the backrest foam pad.

2. Install the 2 pin-type retainers.



3. If equipped, install the power lumbar retaining clips to backrest frame and connect the power lumbar motor.





4. If equipped, install the manual lumbar.

1. Engage the manual lumbar retainers.

2. Install the manual lumbar control cable retainer.

5. If equipped, install the backrest TED (Thermo-Electric Device).

1. Position the TED (Thermo-Electric Device) through the power lumbar cable.

2. Attach the TED (Thermo-Electric Device) to the backrest foam pad wire.

3. Engage the TED (Thermo-Electric Device) upper retainers to the backrest frame wire.

4. Connect the electrical connector and attach the pin-type retainer.

6. If equipped, connect the backrest heater mat electrical connector and attach the pin-type retainer..





7. Install the seat backrest cover. REFER to Seat Backrest Cover .
