Seat Backrest

Seat Backrest

Removal

NOTICE: To prevent system failure, carry out the OCS (Occupant Classification System) reset when a front passenger seat cushion is disassembled, a new trim cover is installed or an OCS (Occupant Classification System) service kit is installed. Use scan tool to carry out the OCS (Occupant Classification System) reset command.

NOTE: For parts identification and location, REFER to Seat - Exploded View, Front .

1. Remove the seat. REFER to Seat .

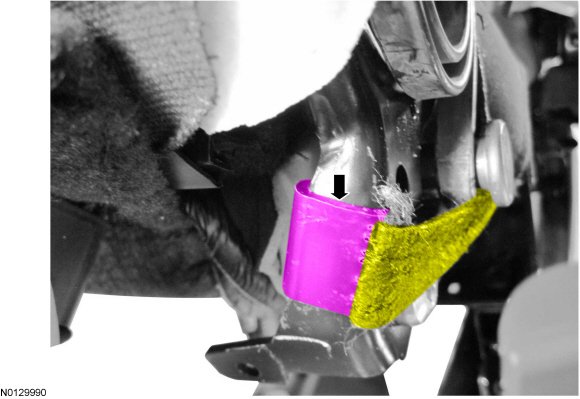

2. Detach the carpet flap toe-kick retainers from under the seat.

1. Separate the 3 J-clips from the seat cushion frame.

2. Position the carpet toe-kick upward and remove the 2 push pin retainers.

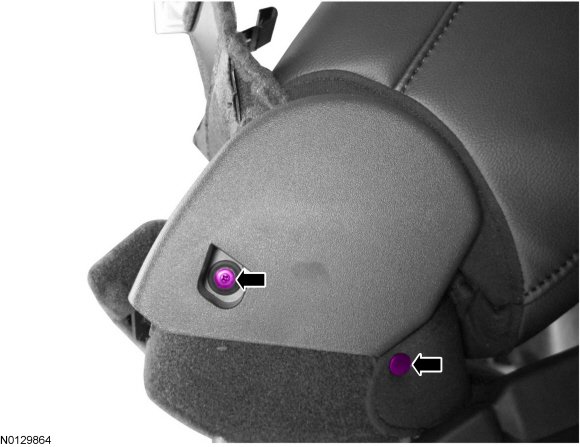

3. Remove the scrivet and push pin retainer from the recliner cover.





4. Remove the recliner cover.

1. Slide the recliner cover toward the front of the seat.

5. Remove the inboard recliner inner cover.

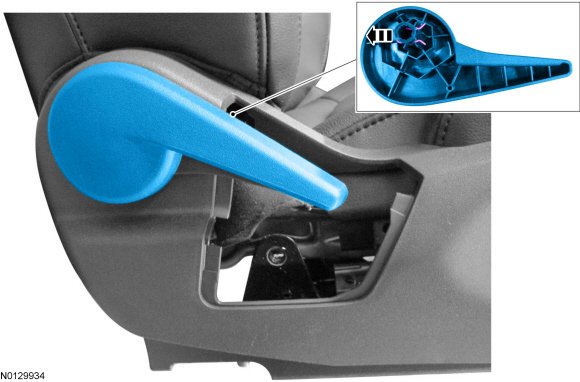

6. If equipped, remove the manual recline handle.

1. Remove the clip and slide the handle off the shaft.

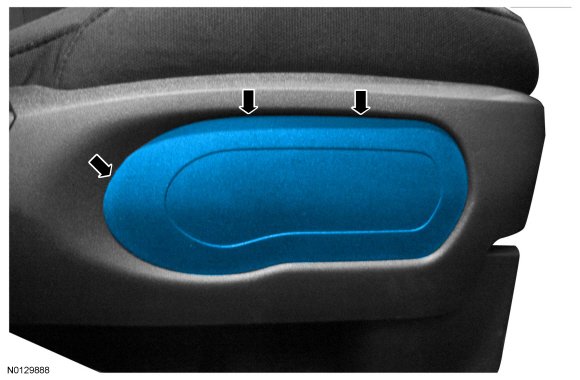

7. For manual seats, remove the seat switch delete cover.

1. Insert a flat-blade screwdriver between the seat cushion and cushion side shield, at the locations shown, and release the retaining tabs.






8. For power seats, remove the power seat switch. REFER to Seat Control Switch .

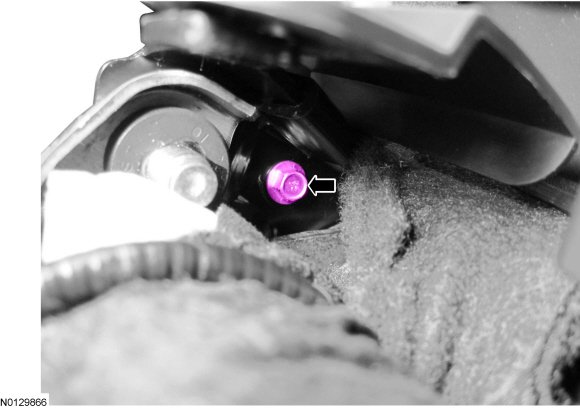

9. Remove the cushion side shield rear inner bolt.

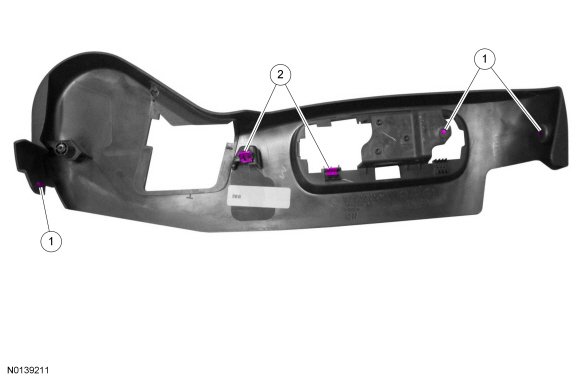

10. Remove the cushion side shield.

1. Remove the screws at the front, center and rear of the cushion side shield.

2. Pull outward and release the 2 retaining clips.

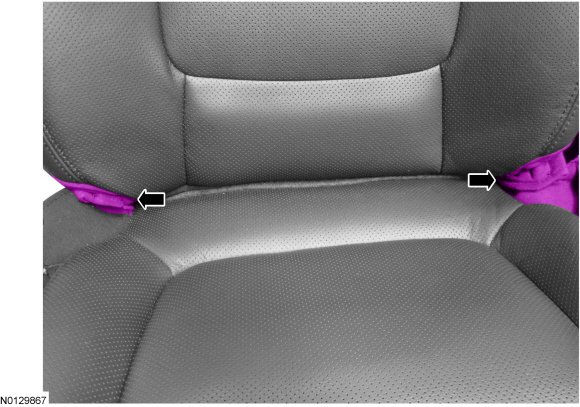

11. Remove the 2 outboard cushion cover J-clips.

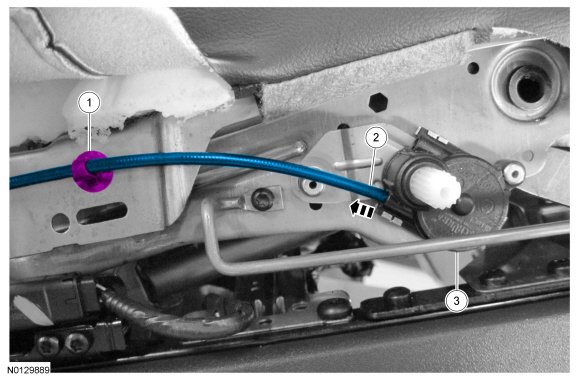

12. If equipped, remove the manual lumbar cable.

1. Detach the manual lumbar cable retainer.

2. Pull the manual lumbar cable outward.

3. Release the manual lumbar cable from the manual lumbar adjuster.

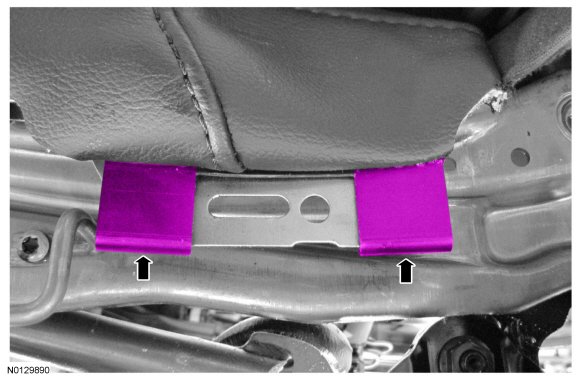

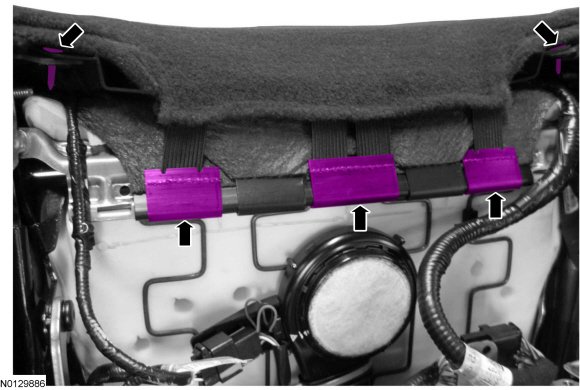

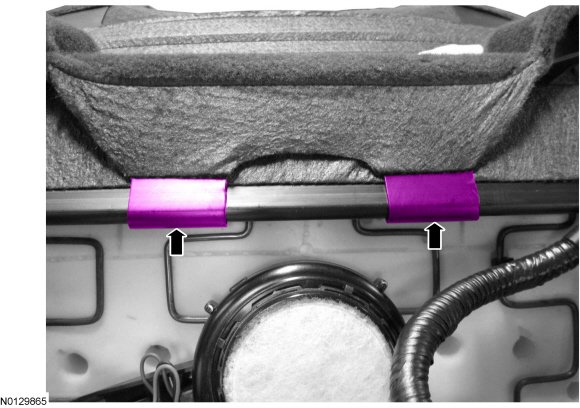

13. Remove the 2 J-clips from the rear of the cushion cover.





14. NOTE: Note J-clip strap routing for installation.
Remove the outboard cushion cover J-clip and strap from the backrest frame.





15. NOTE: Note wire harness routing for installation.

NOTE: Vehicle with a TED (Thermo-Electric Device) shown, all others similar.
Release the side air bag module electrical connector and wire harness retainers under the seat.





16. Disconnect the side air bag module electrical connector.

1. Slide the locking clip back.

2. Push the tab in and disconnect the electrical connector.






17. NOTE: Note wire harness routing for installation.
If equipped, disconnect the backrest electrical connector and release the wire harness retainers attached under the seat.



18. Remove the 4 recliner-to-seat track bolts.

19. Position the seat backrest rearward and detach the 2 J-clips form the cushion cover.





20. NOTE: Note wire harness routing for installation.
Remove the backrest assembly

1. Route the wire harnesses through the holes in the carpet flap toe-kick.

Installation

1. Route the wire harnesses through the holes in the carpet flap toe-kick.

2. Position the seat backrest onto the seat track and attach the 2 J-clips onto the cushion cover.





3. Install, but do not tighten, the 4 recliner-to-seat track bolts by hand.

1. If equipped, route the manual lumbar cable between the backrest and cushion and to the inside of the recliner.

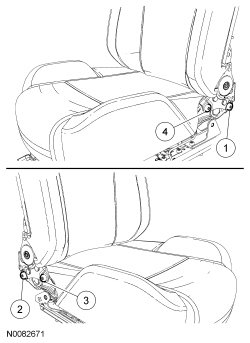

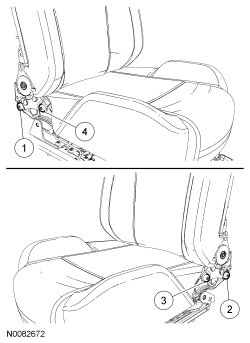

4. Tighten the 4 recliner-to-seat track bolts in the following sequence:

1. Tighten the rear outboard bolt to 48 Nm (35 lb-ft).
2. Tighten the rear inboard bolt to 48 Nm (35 lb-ft).
3. Tighten the front inboard bolt to 48 Nm (35 lb-ft).
4. Tighten the front outboard bolt to 48 Nm (35 lb-ft).

Passenger Seat




Driver Seat





5. If equipped, connect the backrest electrical connector and attach the wire harness retainers under the seat.



6. Connect the side air bag module electrical connector.

7. Install the side air bag module electrical connector and wire harness retainers under the seat.





8. NOTE: Make sure the outboard cushion cover strap is routed below the backrest recliner spring mount.

Attach the outboard cushion cover J-clip and strap onto the backrest frame.





9. If equipped, install the manual lumbar cable in the following sequence:

1. Position the manual lumbar cable into the adjuster.

2. Position the manual lumbar cable cover into the adjuster.

3. Install the manual lumbar cable retainer.

10. Install the 2 outboard side cushion cover J-clips.





11. Install the cushion side shield in the following sequence:

1. Return all retaining clips back to the cushion side shield before installing the shield.

2. Align and attach the retaining clips

3. Install the screws at the front, center and rear of the cushion side shield.

12. Install the cushion side shield rear inner bolt.





13. For power seats, install the power seat switch. REFER to Seat Control Switch .

14. For manual seats, install the seat switch delete cover.

15. If equipped, install the manual recline handle.

16. Install the inboard recliner inner cover.

17. Slide the recliner cover into position and install the scrivet and push pin retainer.





18. Install the carpet flap toe-kick retainers under the seat.

1. Attach the 3 J-clips onto the seat cushion frame.

2. Install the 2 push pin retainers.






19. Install the seat. REFER to Seat . If a passenger seat was serviced, do not carry out the prove out within the repower procedure, continue to the next step.

20. WARNING: OCS (Occupant Classification System) parts are calibrated as an assembly and must only be replaced in the configuration they are sold. Never separate parts of an assembly. Failure to follow this instruction may result in incorrect operation of the OCS (Occupant Classification System) and increases the risk of serious personal injury or death in a crash.

WARNING: Make sure the front passenger seat repair is complete, the seat and all attached components (head restraint, seat side shield, etc.) are correctly assembled, and the seat is correctly installed to the vehicle before using System Reset to rezero the seat weight. Failure to follow these instructions may result in incorrect operation of the OCS (Occupant Classification System) and increases the risk of serious personal injury or death in a crash.

NOTICE: To prevent system failure, take the following precautions before carrying out the OCS (Occupant Classification System) system reset:
- Make sure the voltage to the OCSM (Occupant Classification System Module) is greater than 8 volts and less than 18 volts.
- Make sure the OCS (Occupant Classification System) is not below 6 C (42.8 F) or above 36 C (96.7 F) when initiating the OCS (Occupant Classification System) reset process. If the vehicle has been exposed to extreme cold or hot temperatures, the vehicle must be exposed and kept at a temperature between 6 C (42.8 F) to 36 C (96.7 F) for a minimum of 30 minutes.
- Make sure nothing is present on the passenger seat before and during the OCS (Occupant Classification System) reset process.
- Prior to carrying out the OCS (Occupant Classification System) reset, make sure a minimum of 8 seconds has elapsed after cycling the ignition switch on.

If a passenger seat has been serviced, use a scan tool to carry out the OCS (Occupant Classification System) reset.

21. If the first system reset attempt was unsuccessful, carry out a thorough visual inspection of the following and repair any concerns found.

- OCS (Occupant Classification System) connector and wiring for damage
- Pressure sensor hose for kinks and/or damage
- Seat-related wiring harness and body wiring harness terminals and connectors for damage

22. NOTE: Cycle the ignition switch after the OCS (Occupant Classification System) reset.
Carry out a second OCS (Occupant Classification System) reset. If the second attempt is unsuccessful, install a new OCS (Occupant Classification System) service kit.

23. Prove out the SRS (Supplemental Restraint System): Turn the ignition from ON to OFF. Wait 10 seconds, then turn the ignition back to ON and monitor the air bag warning indicator with the air bag modules installed. The air bag warning indicator illuminates continuously for approximately 6 seconds and then turns off. If a SRS (Supplemental Restraint System) fault is present, the air bag warning indicator will:

- fail to light.
- remain lit continuously.
- flash.
The flashing might not occur until approximately 30 seconds after the ignition has been turned from OFF to ON. This is the time required for the RCM (Restraints Control Module) to complete the testing of the SRS (Supplemental Restraint System). If the air bag warning indicator is inoperative and a SRS (Supplemental Restraint System) fault exists, a chime sounds in a pattern of 5 sets of 5 beeps. If this occurs, diagnose and repair the air bag warning indicator and any SRS (Supplemental Restraint System) faults.
