Home >> Ford Truck >> 2012 >> Explorer FWD L4-2.0L Turbo >> Repair and Diagnosis >> Body and Frame >> Seats >> Power Seat Motor >> Diagrams >> C4245 Third Row Power-fold Seat Motor, Left

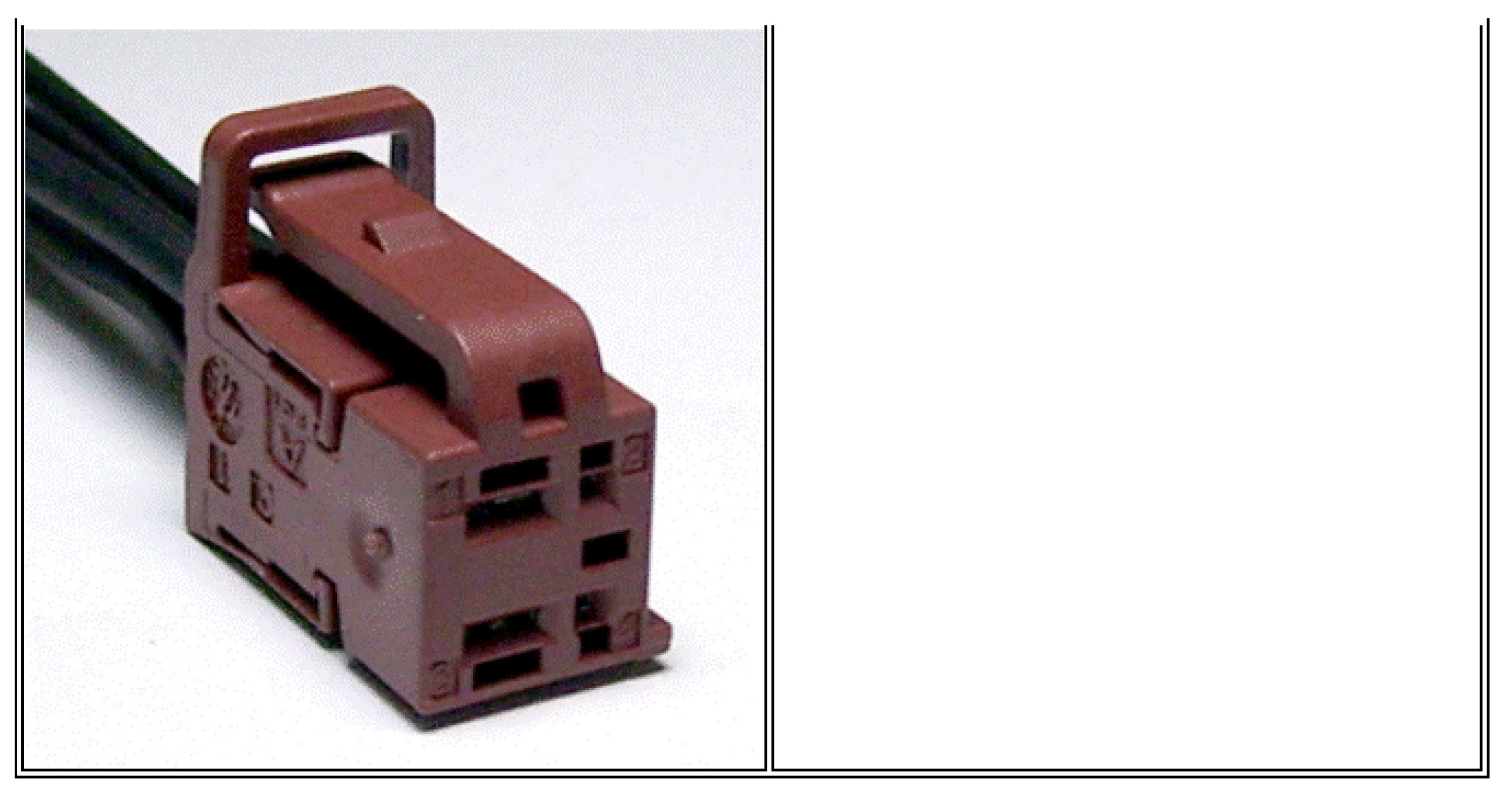

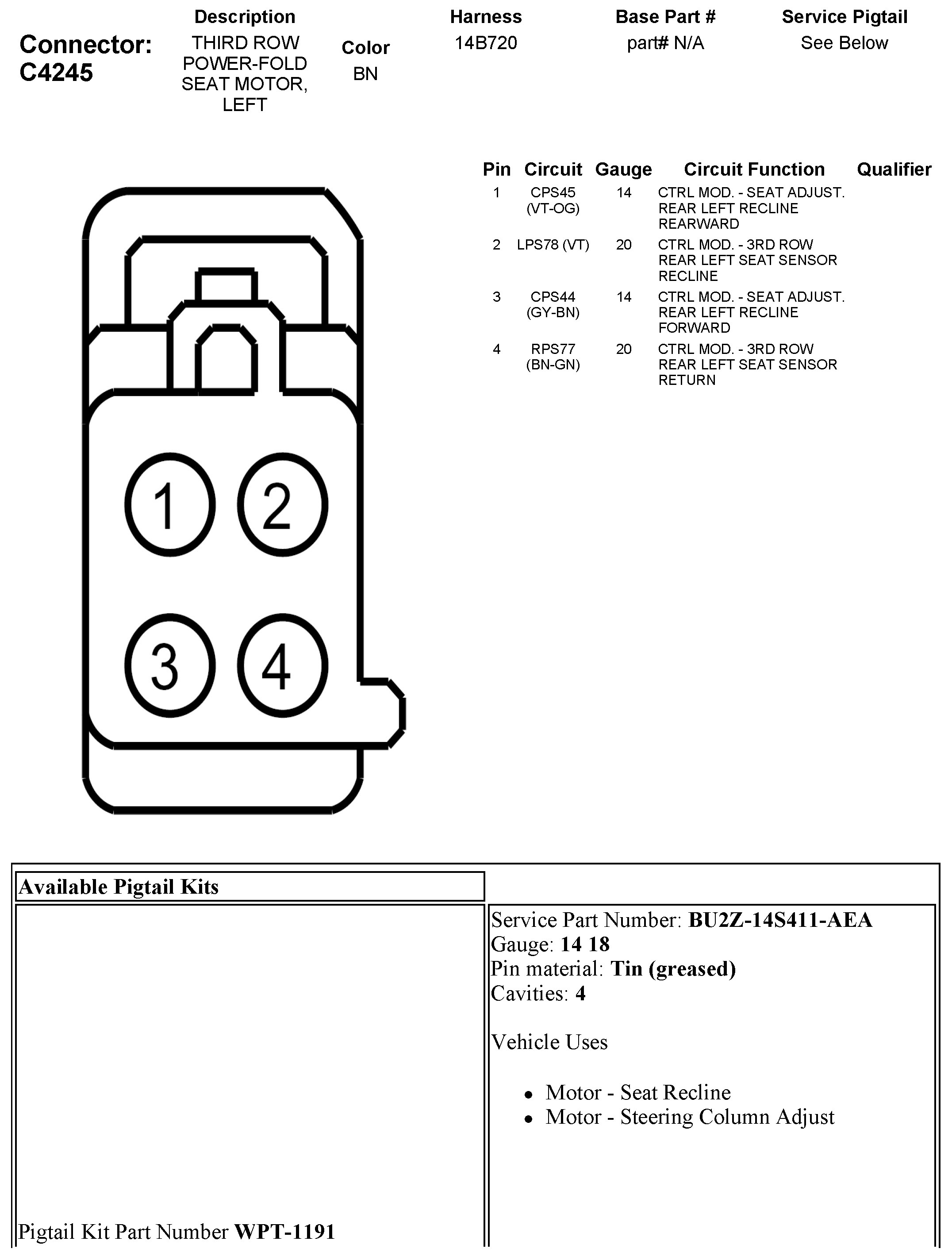

C4245 Third Row Power-fold Seat Motor, Left
