Diagnostic Routine K

Diagnostic Routine K

Diagnostic Overview

The Roof Opening Panel is Noisy During Operation - Shade

Normal Operation and Fault Conditions

The shade operates smoothly and quietly while opening and closing.

Pinpoint Test

1. CHECK THE ROOF OPENING PANEL SHADE TRACK FOR OBSTRUCTIONS OR DAMAGE

1. Check the roof opening panel shade for any obstructions and damage.

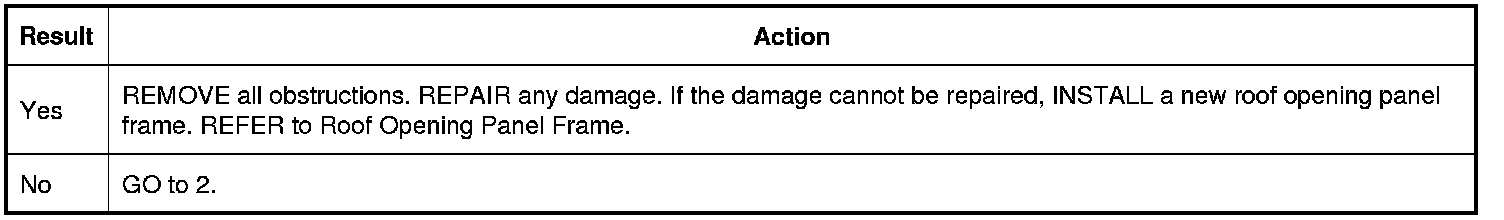

Are there any obstructions and/or damage?








2. CHECK THE ROOF OPENING PANEL SHADE ASSEMBLY FOR CORRECT INSTALLATION

1. Check the roof opening panel shade for correct installation.

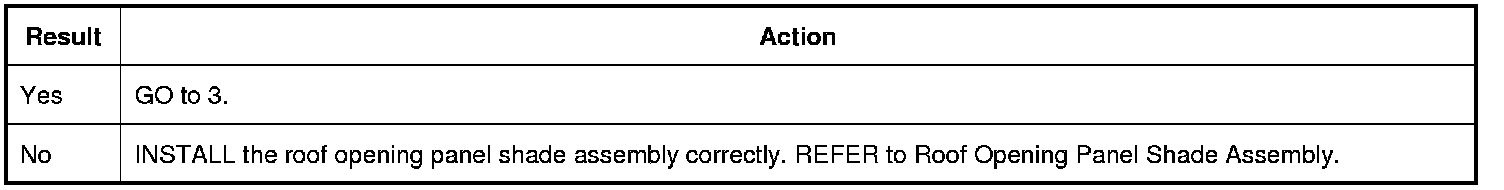

Is the roof opening panel shade assembly installed correctly?








3. CHECK THE ROOF OPENING PANEL SHADE MOTOR

1. Remove the roof opening panel shade motor and leave the electrical connector connected.

2. Operate the roof opening panel shade to the full OPEN and CLOSED position using the shade control switch.

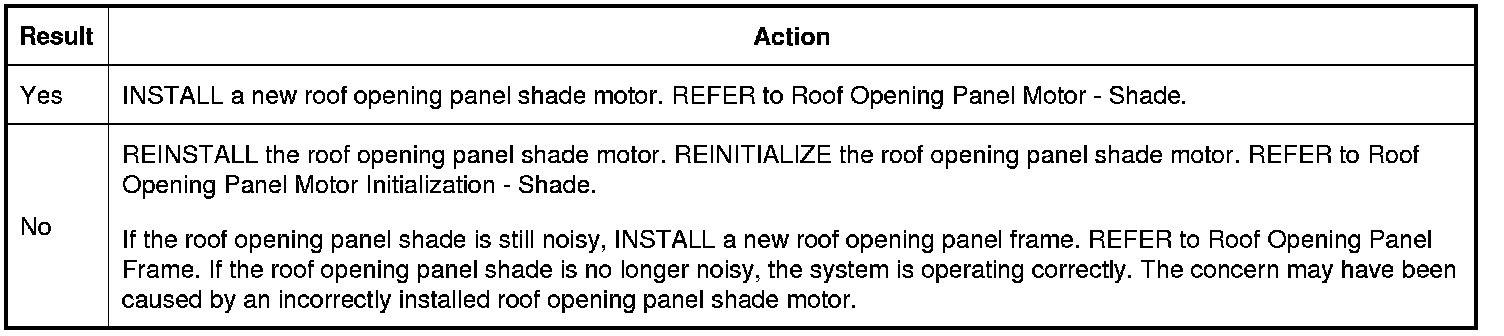

Does the roof opening panel shade motor make excessive noise?
