Roof Opening Panel - Exploded View




Roof Opening Panel - Exploded View

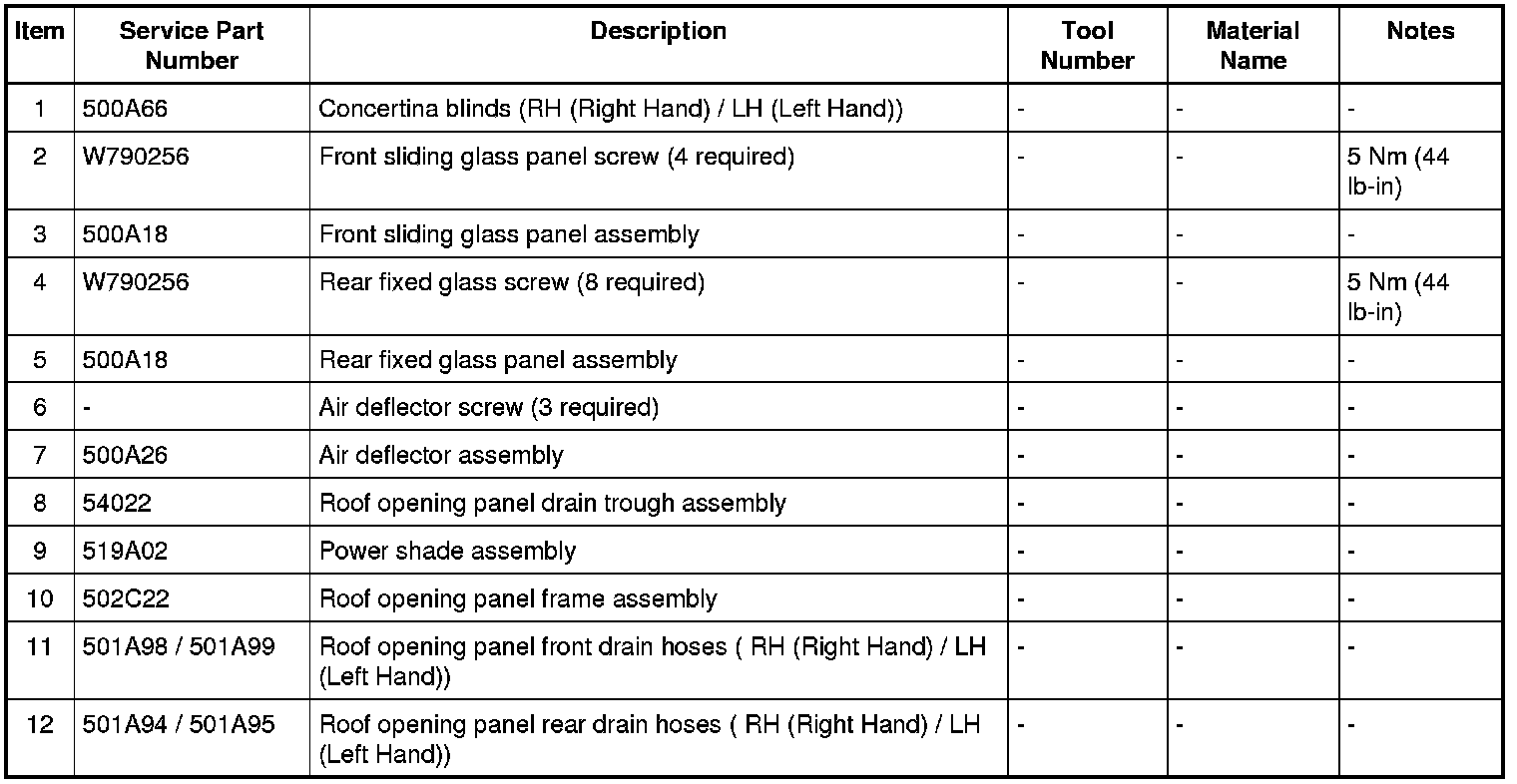

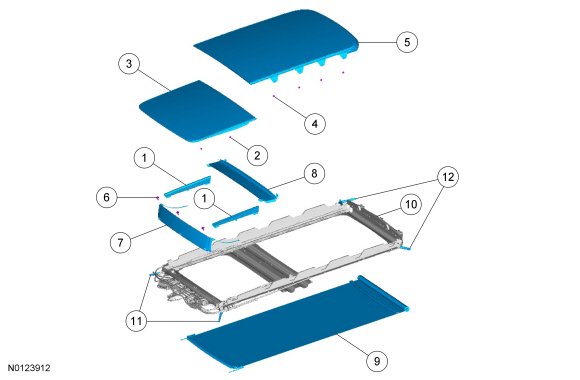

Exploded View

Roof Opening Panel

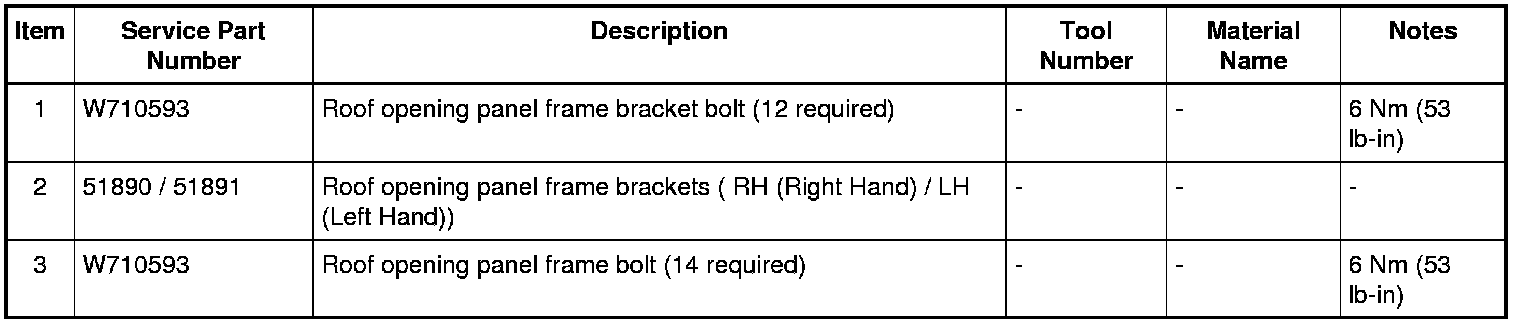

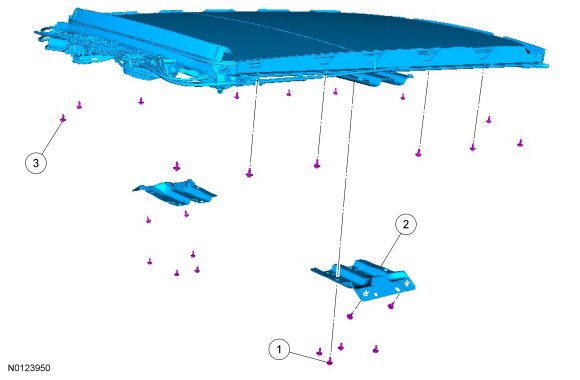

Roof Opening Panel Mounting

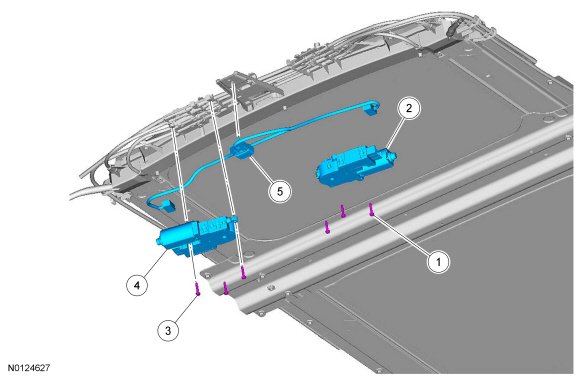

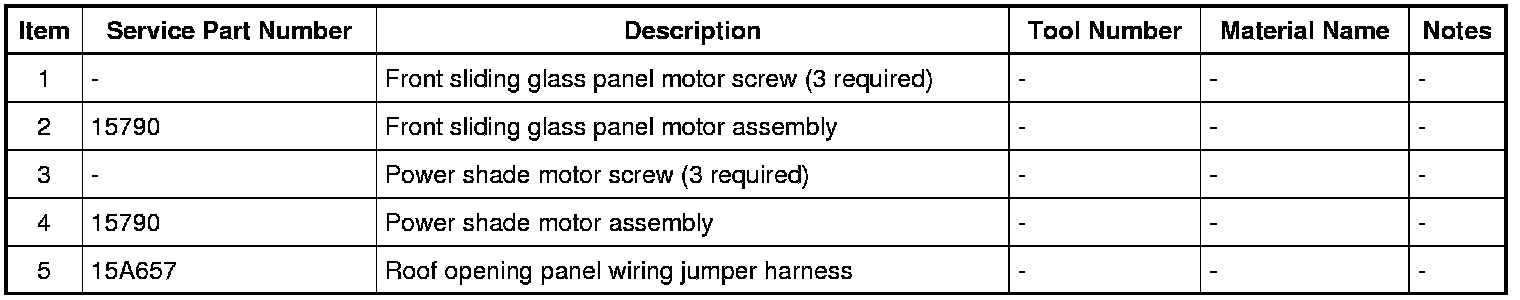

Roof Opening Panel Motors
