Luggage / Roof Rack: Service and Repair

Roof Rack

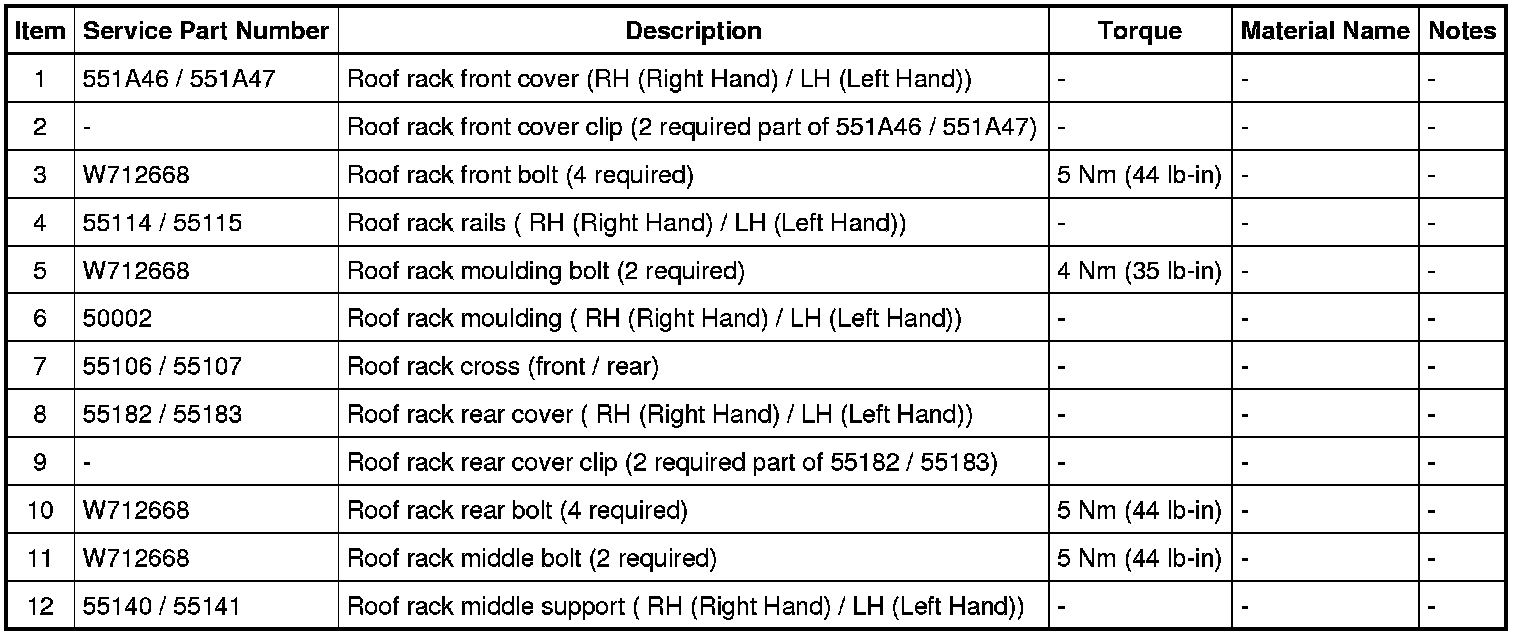

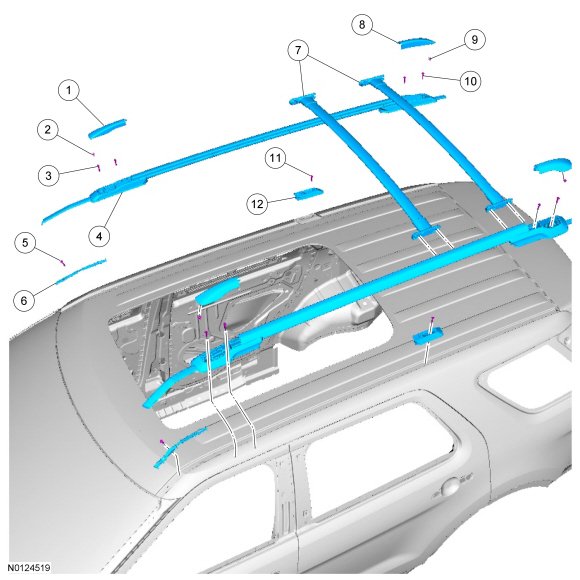

Exploded View










Removal

1. Remove the front and rear roof rack covers.

2. Remove the 2 front roof rack bolts and the 2 rear roof rack bolts.

3. Slide the roof rack rail forward to disengage from the center support and remove.

Installation

1. To install, reverse the removal procedure.
