Home >> Ford Truck >> 2012 >> Explorer FWD L4-2.0L Turbo >> Repair and Diagnosis >> Body and Frame >> Relays and Modules - Body and Frame >> Power Trunk / Liftgate Control Module >> Diagrams >> C4082 Intelligent Access (IA) Antenna, Liftgate

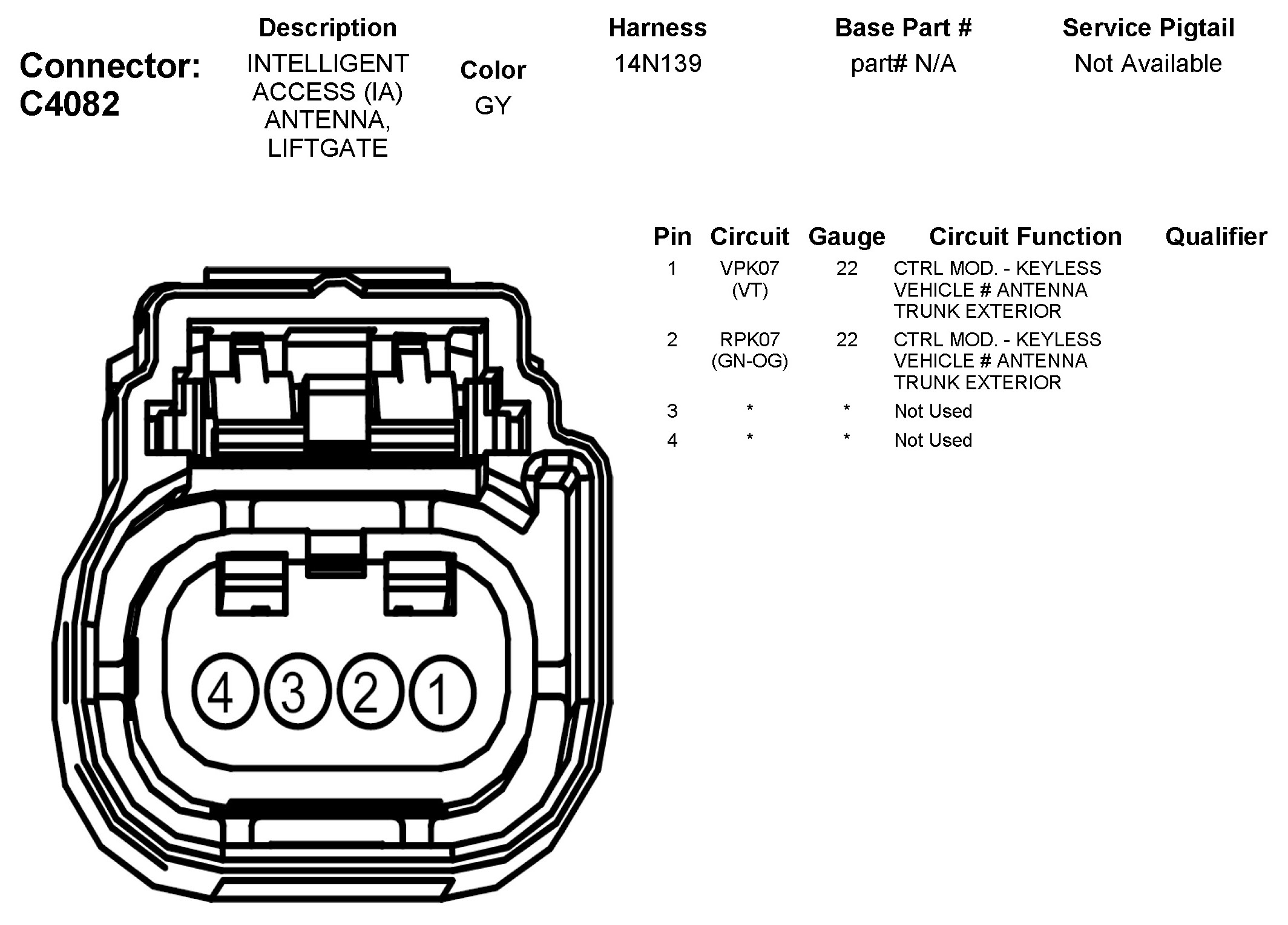

C4082 Intelligent Access (IA) Antenna, Liftgate
