Interior Rear View Mirror - Auto-Dimming

Interior Rear View Mirror - Auto-Dimming

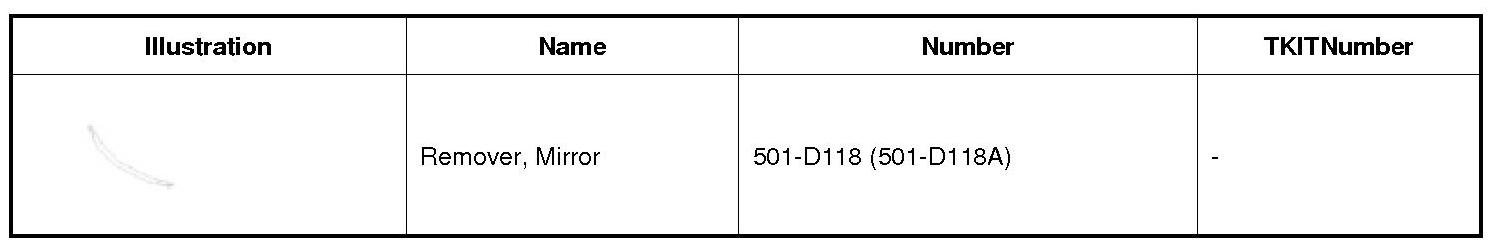

Special Tool(s)

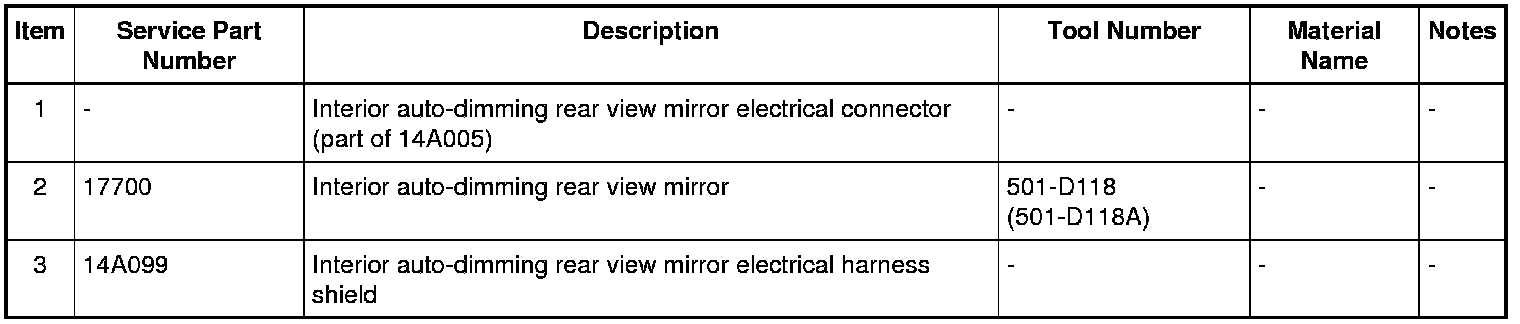

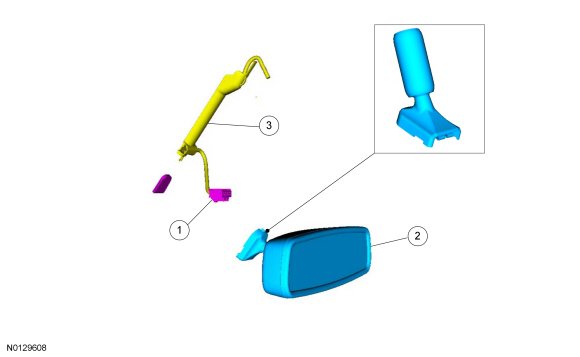

Exploded View










Removal

1. NOTICE: This procedure should be used only for an interior rear view mirror with the top access mount. Otherwise, damage to the windshield glass may occur.

NOTICE: The windshield must be at room temperature. Otherwise, damage to the windshield glass may occur.

Disconnect the electrical connector.

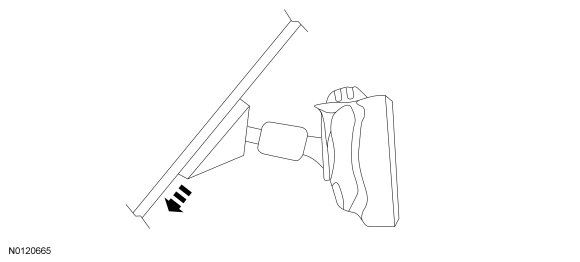

2. Position the interior rear view mirror to the full downward position.

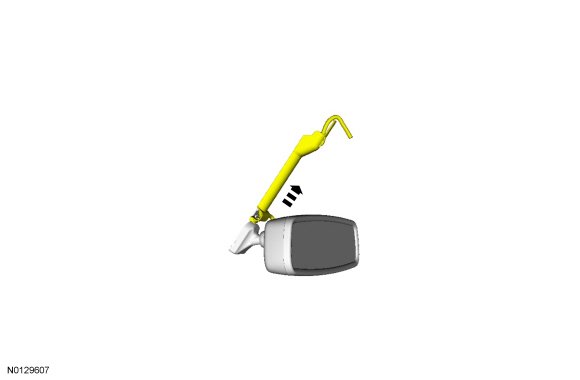

3. If equipped, position aside the interior auto-dimming rear view mirror electrical harness shield.





4. If equipped, remove the rain sensor cover. REFER to Exterior Mirrors - Exploded View .

5. NOTICE: Make sure 501-D118 (501-D118A) is fully inserted into the interior rear view mirror mount access hole. Otherwise, damage to the windshield glass may occur.

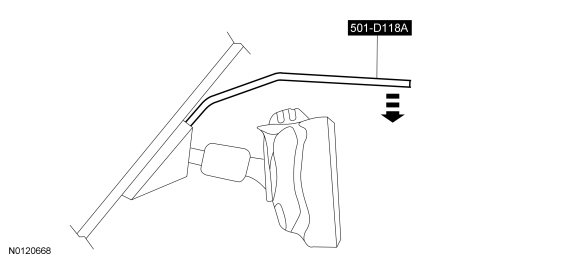

Insert 501-D118 (501-D118A) between the interior rear view mirror mount and windshield bracket, located at the top of the interior rear view mirror mount.





6. NOTICE: Twisting the interior rear view mirror mount from right to left may cause a stress fracture to the windshield.

NOTICE: Make sure to use the windshield bracket as the pivot point. Otherwise, damage to the windshield will occur.

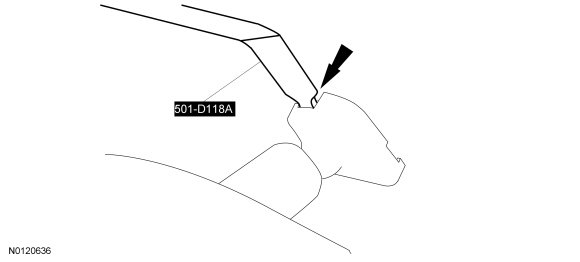

Release the interior rear view mirror mount from the windshield bracket by pulling 501-D118 (501-D118A) downward and away from the windshield.





Installation

1. Slide the interior rear view mirror mount over the windshield bracket from the top.





2. Press the interior rear view mirror mount downward along the windshield bracket until a click is felt. The click indicates that the mirror mount is engaged onto the windshield bracket.

3. If equipped, install the rain sensor cover. REFER to Exterior Mirrors - Exploded View .

4. If equipped, position back the interior auto-dimming rear view mirror electrical harness shield.

5. Connect the electrical connector.
