Diagnostic Routine V

Diagnostic Routine V

Diagnostic Overview

Manual Door Lock Cylinder Inoperative

Normal Operations and Fault Conditions

The door lock cylinder is connected to the door latch via a lock rod and can be used to manually lock/unlock a door.

Pinpoint Test

1. CHECK THE LOCK CYLINDER OPERATION AFTER LUBRICATION

1. Spray a lock lubricant such as Penetrating and Lock Lubricant (US); Penetrating Fluid (Canada) into the lock cylinder opening for a couple seconds.

2. Operate the door lock cylinder with the key.

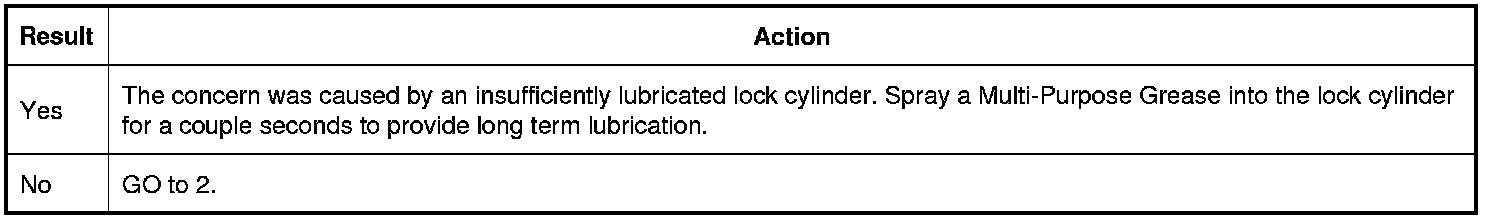

Does the door lock and unlock using the door lock cylinder?








2. CHECK THE DOOR LOCK CYLINDER

1. Remove the door lock cylinder. REFER to Door Lock Cylinder .

2. Operate the door lock cylinder with the key.

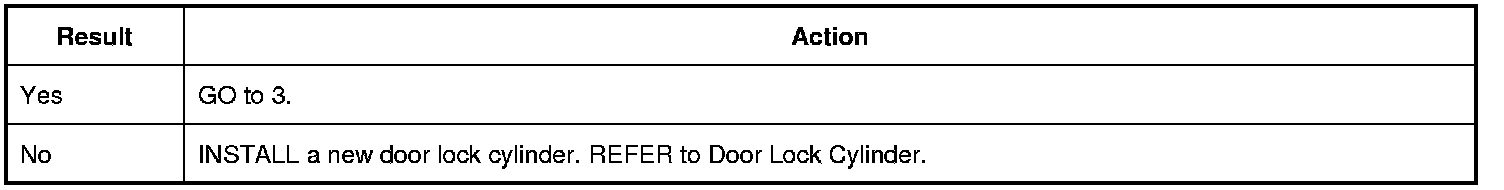

Does the door lock cylinder rotate freely to both lock and unlock positions?








3. CHECK THE DOOR LOCK CYLINDER LINKAGE

1. Operate the door lock cylinder while observing the linkage.

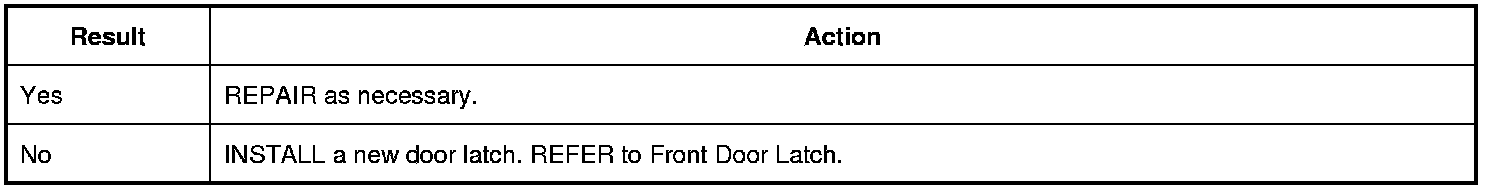

Is the door lock cylinder rod and lever bent or binding?
