Diagnostic Routine U

Diagnostic Routine U

Diagnostic Overview

Squeek-Rattle-Chucking Noise From Door

Visual Inspection and Diagnostic Pre-checks

- Door alignment

- Striker adjustment

Pinpoint Test

1. CHECK FOR ANY LOOSE COMPONENTS

1. Remove the door trim panel. REFER to Door Trim Panel - Front or REFER to Door Trim Panel - Rear .

2. Inspect inside the door for any loose components.

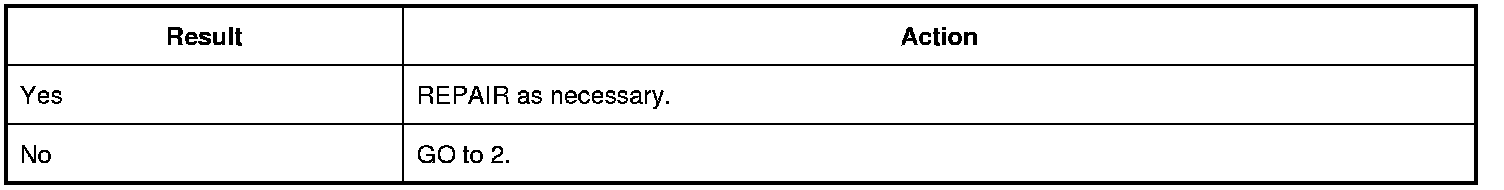

Are there any loose components inside the door?








2. CHECK THE STRIKER ADJUSTMENT

1. Check the adjustment of the striker. REFER to Door Alignment - Front or REFER to Door Trim Panel - Rear .

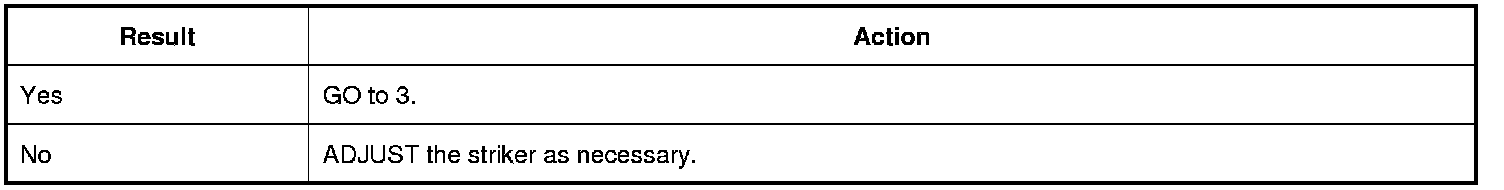

Is the striker adjusted correctly?








3. CHECK THE DOOR ALIGNMENT

1. Check the alignment of the door. REFER to Door Alignment - Front or REFER to Door Trim Panel - Rear .

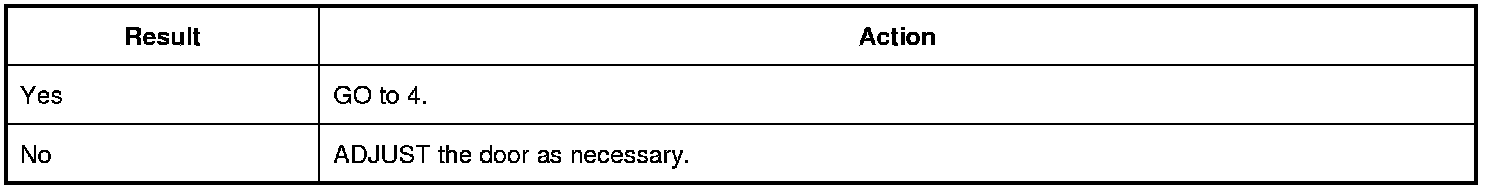

Is the door aligned correctly?








4. CHECK THE LATCH OPERATION AFTER LUBRICATION

1. Lubricate the door latch. REFER to Latch Lubrication .

2. Using a screwdriver, fully close the latch (2 clicks).

3. Operate the door latch and listen for the noise.

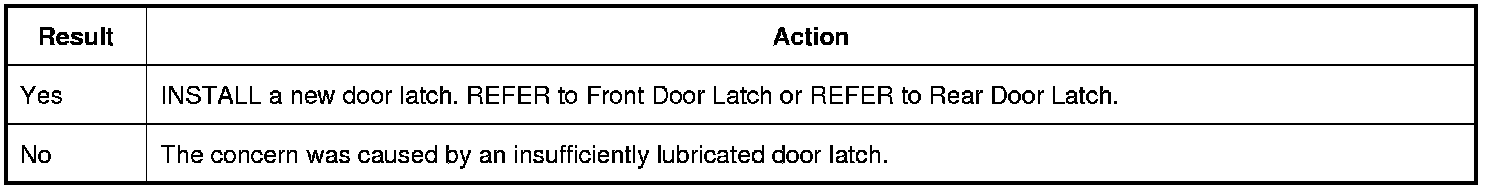

Is the original noise still present after the latch is lubricated?
