Diagnostic Routine M

Diagnostic Routine M

Diagnostic Overview

The Smart Unlock Does Not Operate Correctly

Normal Operations and Fault Conditions

REFER to Smart Unlock for information on smart unlock operation.

Pinpoint Test

1. CHECK THE DOOR AJAR INPUT OPERATION

1. Open and close each door and liftgate while checking the courtesy lamp operation.

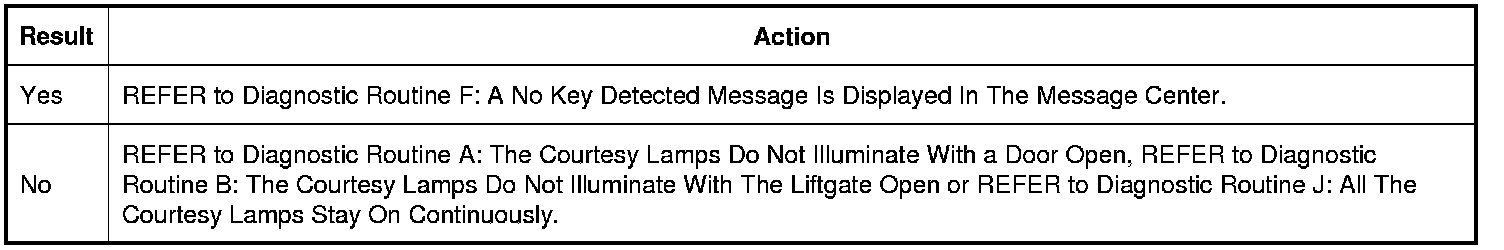

Do the courtesy lamps operate correctly?
