Door Lock Cylinder

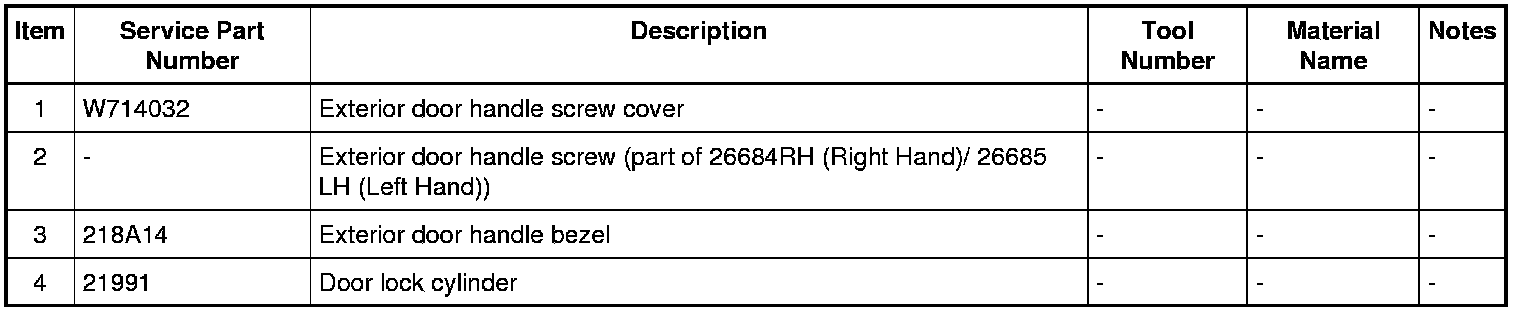

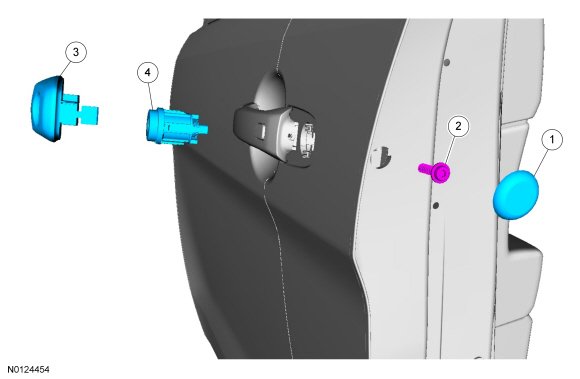

Exploded View










Removal

1. NOTE: Individual lock cylinders are repaired by discarding the inoperative cylinder and building a new lock cylinder using the appropriate lock repair package. The lock repair package includes a detailed instruction sheet to build the current key code of the vehicle.
Remove the exterior door handle. REFER to Exterior Door Handle .

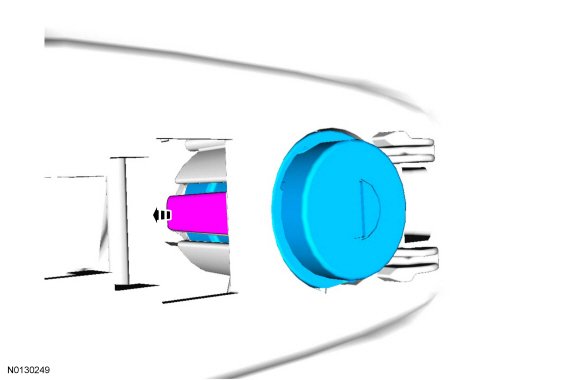

2. Release the tab and remove the door lock cylinder.





Installation

1. To install, reverse the removal procedure.
