Quarter Trim Panel - Without Inflatable Safety Belts

Quarter Trim Panel - Without Inflatable Safety Belts

WARNING: Before beginning any service procedure, REFER to Safety Warnings . Failure to follow this instruction may result in serious personal injury.

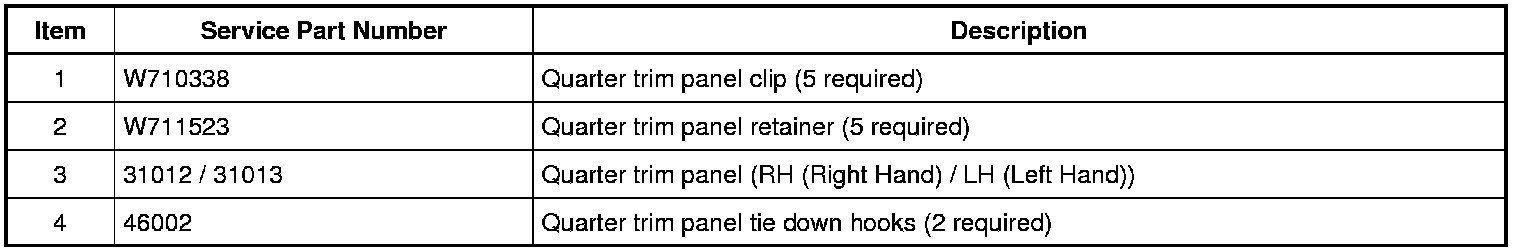

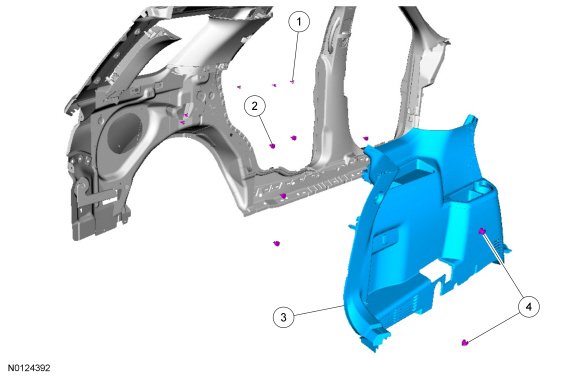

Exploded View










Removal

1. Position aside the liftgate weatherstrip.

2. NOTICE: To avoid damage to the liftgate scuff plate trim panel, remove any retaining clips from the body and attach them to the liftgate scuff plate trim panel before installing.

Remove the liftgate scuff plate trim panel.

1. Pull upward to release the retaining clips.

2. If equipped, disconnect the rear passive start antenna electrical connector and remove the liftgate scuff plate trim panel.






3. NOTICE: To avoid damage to the scuff plate trim panel, remove any retaining clips from the body and attach them to the scuff plate trim panel before installing.

Remove the rear door scuff plate trim panel. REFER to Scuff Plate Trim Panel .

4. Remove the quarter trim panel push pin retainer.





5. Position the second row seat in the flat position and then tilt the second row seat forward.

6. Position the third row seat in the flat position.

7. Remove the 2 quarter trim panel tie down hooks.





8. Remove the third row safety belt anchor bolt cover on the quarter trim panel.

9. Remove the third row safety belt anchor bolt.
- To install, tighten to 40 Nm (30 lb-ft).

10. NOTICE: To avoid damage to the quarter trim panel, remove any retaining clips from the body and attach them to the quarter trim panel before installing.

Pull the quarter trim panel toward the inside of the vehicle to release the quarter trim panel clips and disconnect electrical connectors and remove the quarter trim panel.

Installation

1. To install, reverse the removal procedure.

- Transfer parts as necessary.
