C-Pillar Trim Panel - Without Inflatable Safety Belts

C-Pillar Trim Panel - Without Inflatable Safety Belts

WARNING: Before beginning any service procedure, REFER to Safety Warnings . Failure to follow this instruction may result in serious personal injury.

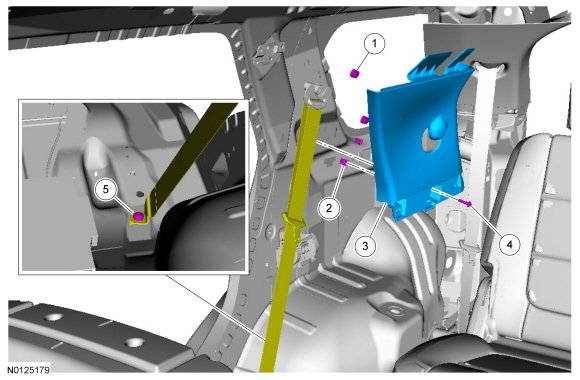

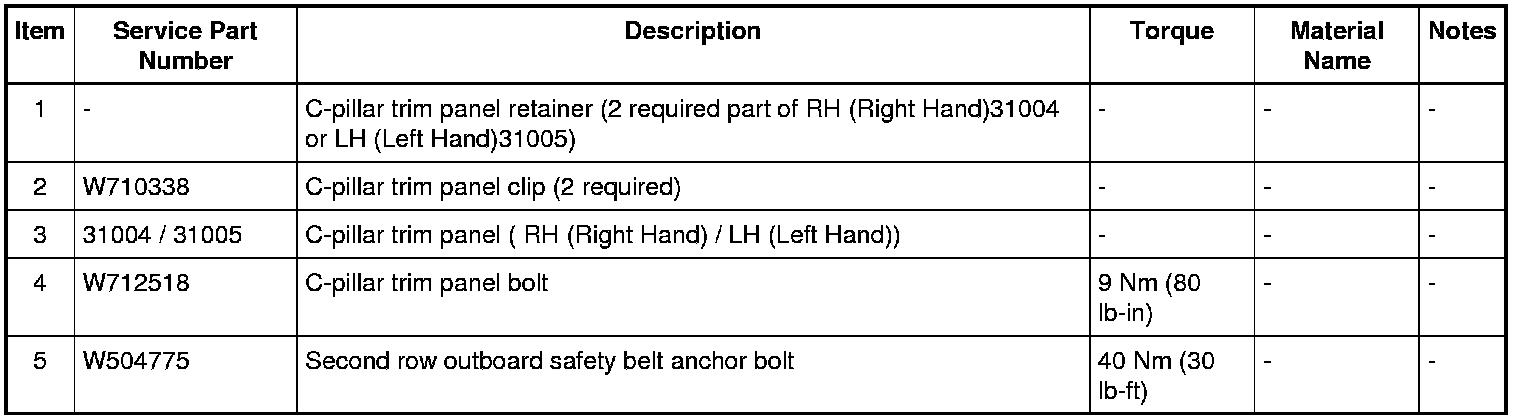

Exploded View










Removal

1. Remove the quarter trim panel. REFER to Quarter Trim Panel - Without Inflatable Safety Belts .



2. Position aside the rear door weatherstrip.

3. Remove the C-pillar trim panel bolt.

4. Remove the second row outer safety belt anchor bolt.

5. Pull the second row outer safety belt through the C-pillar trim and remove the trim panel.

Installation

1. Feed the second row outboard safety belt through the C-pillar trim panel and install the trim panel on the body.

2. Install the C-pillar trim bolt.
- Tighten to 9 Nm (80 lb-in).

3. Install the second row outboard safety belt anchor bolt.
- Tighten to 40 Nm (30 lb-ft).

4. Position back the rear door weatherstrip.

5. Install the quarter trim panel. REFER to Quarter Trim Panel - Without Inflatable Safety Belts .
