Scuff Plate: Service and Repair

Scuff Plate Trim Panel

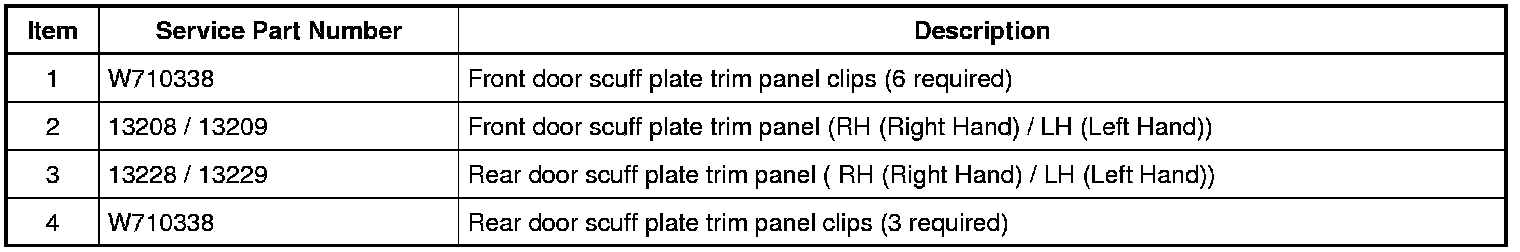

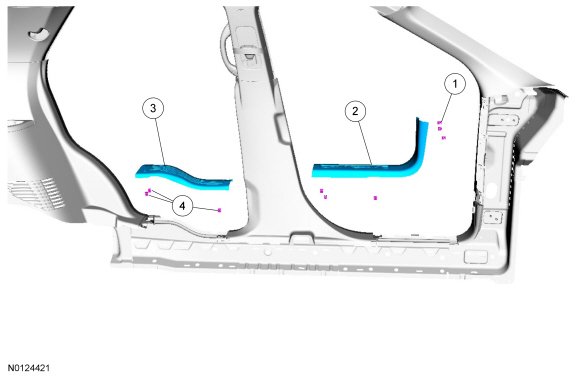

Exploded View










Removal

1. Pull upward on the scuff plate trim panel to release the retainer clips and remove the scuff plate trim panel.

Installation

NOTICE: To avoid damage to the scuff plate trim panel, remove any retaining clips from the body and attach them to the scuff plate trim panel before installing.

1. Press down on the scuff plate trim panel and install into the body.
